(09-50[01]) - SEAT CLOTH, LP CAB

Запчасти Case IH MX80C (09-50[01]) - SEAT CLOTH, LP CAB (09) - CHASSIS

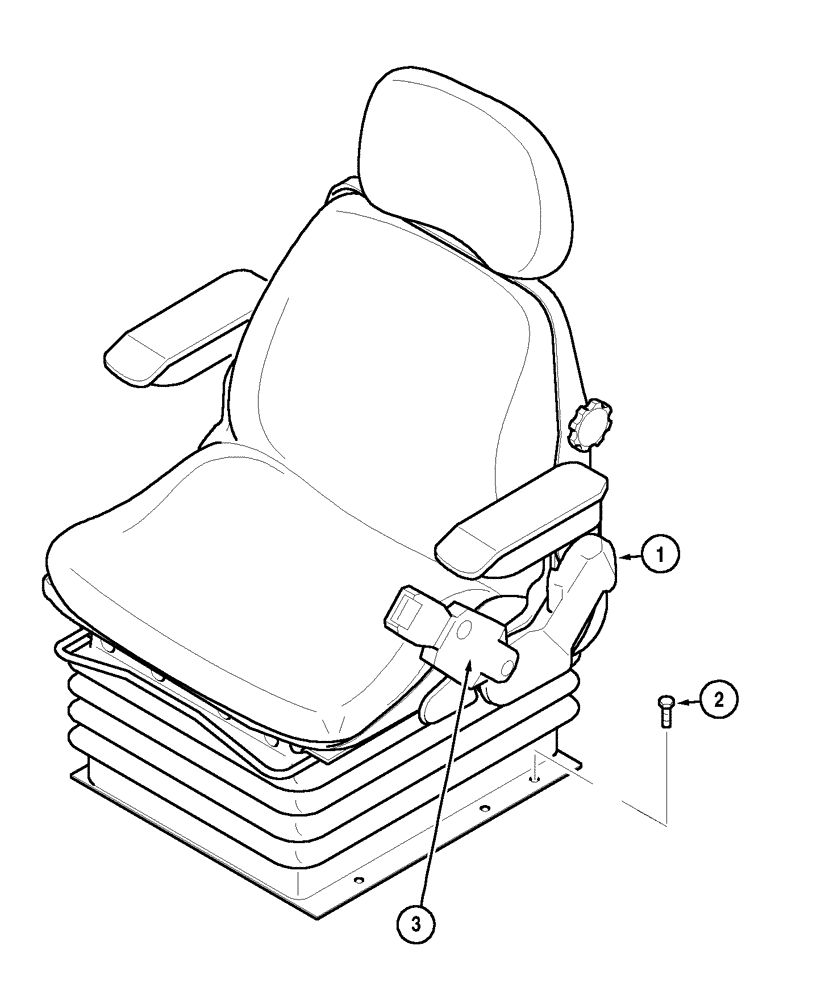

Схема запчастей Case IH MX80C - (09-50[01]) - SEAT CLOTH, LP CAB (09) - CHASSIS
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

364226A1

SEAT ASSY.

class IV, without belt, see pag. 2

1шт.

1

364228A2

SEAT ASSY.

class III, without belt

1шт.

2

781-24820

SELF-TAP SCREW,Hex Flg, M8 x 1.25 x 20mm

4шт.

3

388274A1

SAFETY BELT

SAFETY BELT

1шт.
