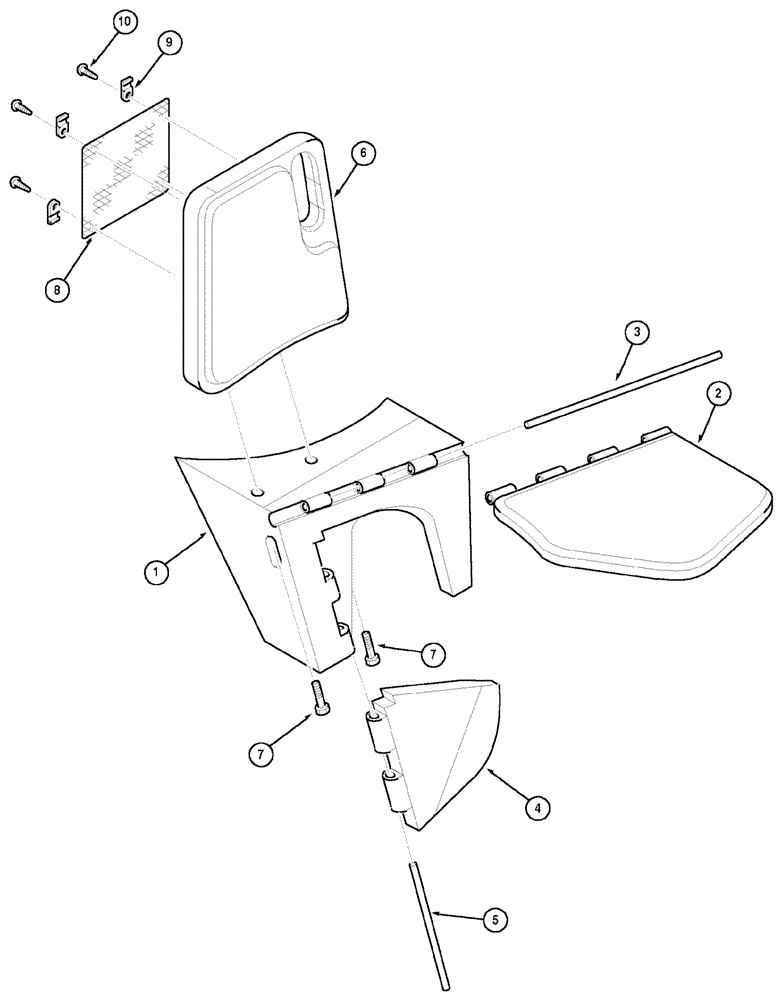

Запчасти Case IH MX80C (09-56) - SEAT CO-WORKER, EUROPE ONLY (09) - CHASSIS

392505A1

SEAT ASSY.

consists of: 1 - 10

1шт.

1

392815A1

SEAT CARRIER

1шт.

2

392818A1

INSTRUCTIONAL SEAT

1шт.

3

392813A1

ROD

long

1шт.

4

392814A1

SIDE PLATE

1шт.

5

392811A1

ROD

short

1шт.

6

392817A1

BACKREST

1шт.

7

863-8030

HEX SOC SCREW,M8 x 30mm, Cl 12.9

2шт.

8

395128A1

NET

storage

1шт.

9

395129A1

CLAMP

4шт.

10

265-1438

SELF-TAP SCREW,Cross Oval Hd, #6 x 1/2"

4шт.
