(1.21.1/05) - (VAR.780-781) LIFT AND FRONT PTO (WITH 6-21 SPLINES) CCLS - GUARDS FOR FRONT AXLE SUPPORT

Запчасти Case IH MXM120 (1.21.1/05) - (VAR.780-781) LIFT AND FRONT PTO (WITH 6-21 SPLINES) CCLS - GUARDS FOR FRONT AXLE SUPPORT (03) - TRANSMISSION

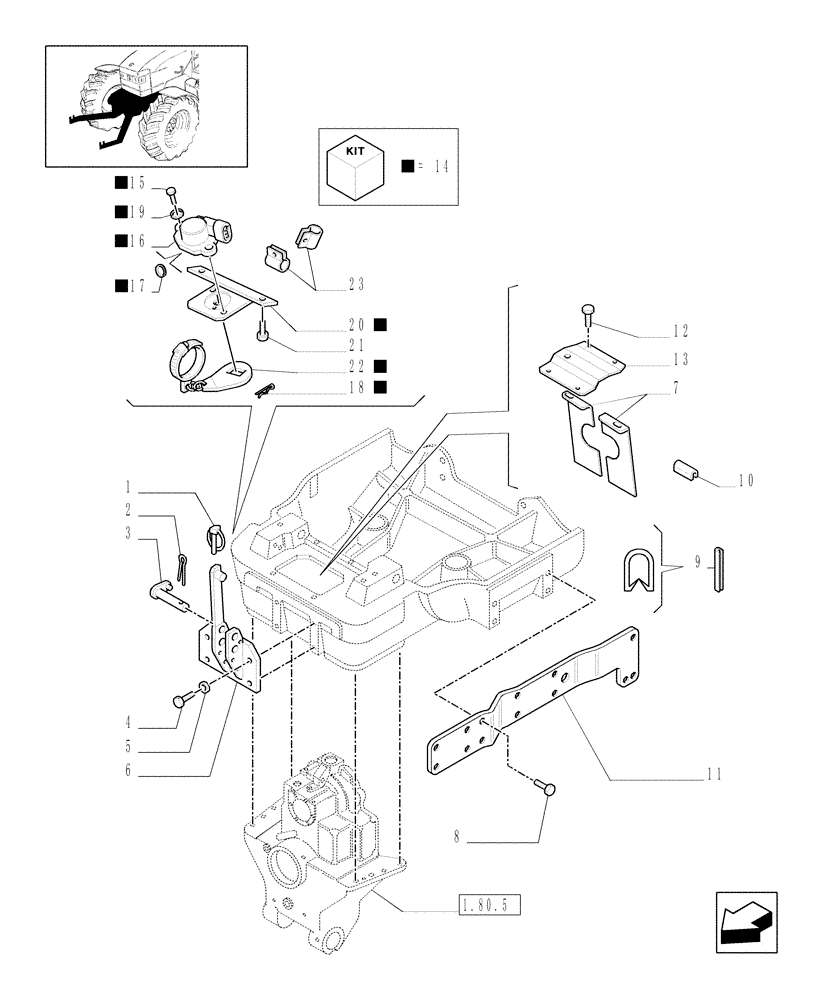

Схема запчастей Case IH MXM120 - (1.21.1/05) - (VAR.780-781) LIFT AND FRONT PTO (WITH 6-21 SPLINES) CCLS - GUARDS FOR FRONT AXLE SUPPORT (03) - TRANSMISSION
5
2
11
14
21
14
1
16
14
14
22
17
14
15
13
10
12
4
6
3
14
14
1.80.5
23
8
18
20
9
7
16
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82013836

ROLL PIN,6mm OD

LOCK PIN

1шт.

2

5112606

COTTER PIN,2.5mm OD x 66.5mm L

1шт.

3

82017214

PIN

1шт.

4

11125037

BOLT,Hex, M20 x 65, 10.9, Full Thd

4шт.

5

10572371

LOCK WASHER,M20

4шт.

6

82015462

SUPPORT

1шт.

7

82015495

GUARD

1шт.

7

82019510

GUARD

1шт.

8

82020153

BOLT,Flng, M20 x 2.5 x 58mm, Cl 12.9

Self Locking, M20 x 2.5 x 58, 12.9

18шт.

9

82869674

MOLDING,88.5mm L

1шт.

10

82015330

BUMPER

55 mm lg

1шт.

11

82036332

SIDE RAIL

LH

1шт.

11

82036333

SIDE RAIL

RH

1шт.

12

10979224

BOLT,Hex, M10 x 16mm, Cl 8.8, Full Thd

3шт.

13

82035348

GUARD

1шт.

14

82018481

POTENTIOMETER

Front Hitch

1шт.

15

15211421

BOLT,Hex, M5 x 30mm, Cl 8.8, Full Thd

2шт.

16

82021037

POTENTIOMETER,5000 Ohm, 13.5 VDC

Rotary Position

1шт.

17

82018588

RING

1шт.

18

83957394

PIN,0.072" x 0.82"

1шт.

19

85700057

LOCK WASHER,Serr, M5

2шт.

20

82018467

SUPPORT

1шт.

21

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

22

82018468

LEVER

1шт.

23

83946686

CLIP

1шт.
