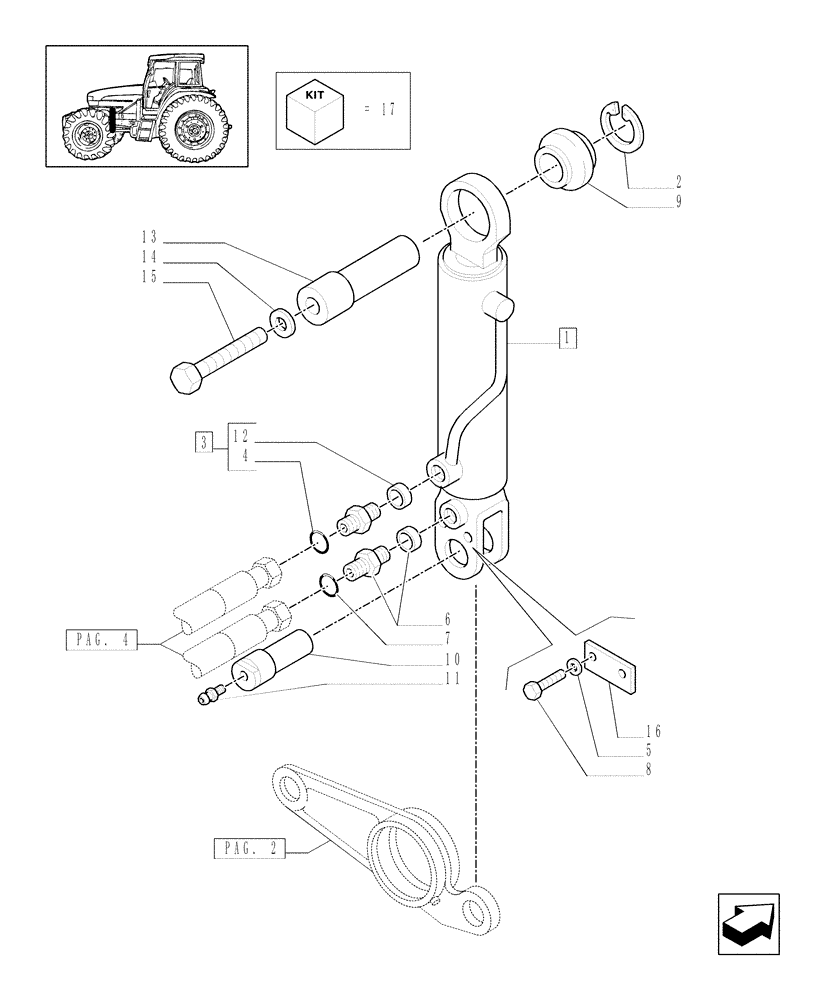

Запчасти Case IH MXM120 (1.21.3/01[03]) - (VAR.452/1) 4WD FRONT AXLE WITH SUSPENSIONS, BRAKE, TERRALOCK, SPS - CYLINDER (03) - TRANSMISSION

1

47125430

HYDRAULIC CYLINDER,Double Acting, 55mm Rod, 157.5mm Stroke

Incl. Ref. 2, 3, 4, 5, 6, 7, 8, 9

1шт.

2

80370012

SNAP RING

D=62

1шт.

3

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

1"-14 UN-2A/M22 x 1.5

1шт.

4

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

90 Duro

1шт.

5

85700672

LOCK WASHER,M10

2шт.

6

82019639

HYD CONNECTOR

13/16 2UN-2A/M27 x 2

1шт.

7

89991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

90 Duro, .750" ID x .070" Thk

1шт.

8

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

9

82016695

SPHERICAL BEARING,60mm ID x 62mm OD x 35mm W

1шт.

10

82030091

PIN

1шт.

11

87414

LUBE NIPPLE,1/4" - 28

1шт.

12

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

34.2 x 39.7 x 9.5

1шт.

13

82030656

PIN

Cap, HH, CL 8.8, M10 x 1.5 x 20

1шт.

14

83931520

WASHER,8.4mm ID x 17mm OD x 2mm Thk

1шт.

15

83991792

BOLT

M8 x 150

1шт.

16

82016870

BRACKET

1шт.

17

47123025

SEAL KIT

1шт.
