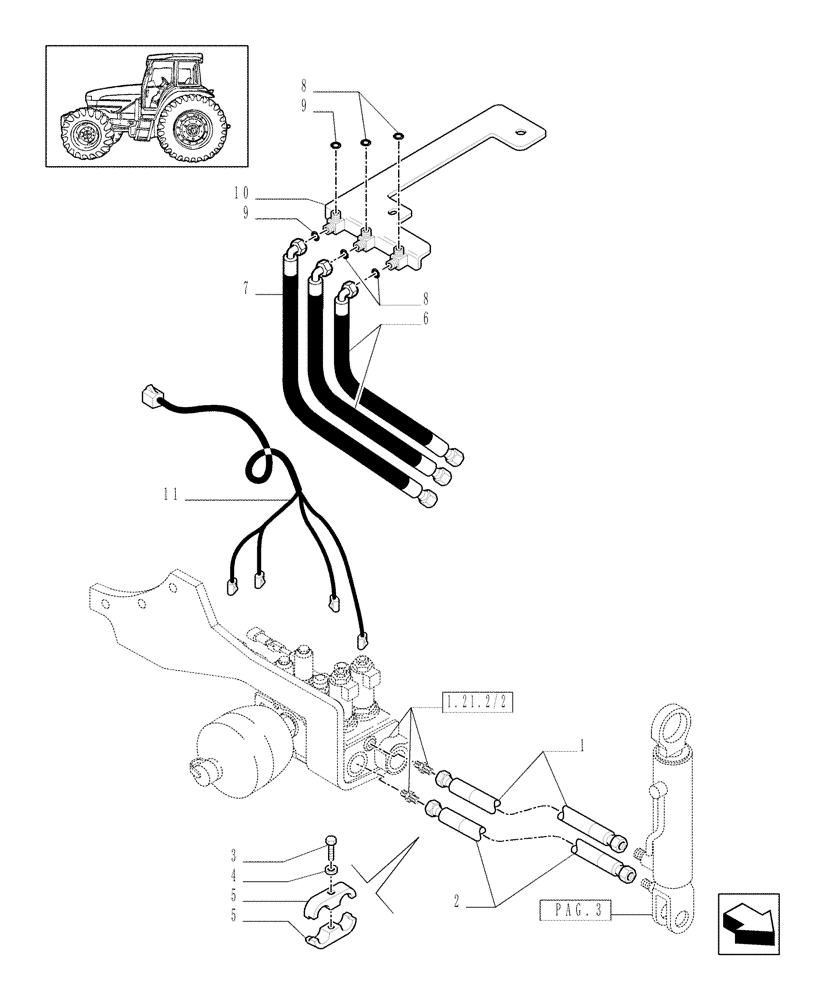

Запчасти Case IH MXM120 (1.21.3/02[04]) - (VAR.463) 4WD FRONT AXLE WITH SUSPENSIONS, FULL POWER SHIFT - PIPES (03) - TRANSMISSION

1

82030130

FLEXIBLE HOSE

MXM120, MXM130, MXM140, MXM155, Serial Range: -ACM259775

1шт.

1

82030402

FLEXIBLE HOSE

MXM175, MXM190, Serial Range: -ACM259775

1шт.

1

87313019

FLEXIBLE HOSE

MXM120, MXM130, MXM140, MXM155, Lower, Start Serial: ACM259776

1шт.

1

87312949

FLEXIBLE HOSE

MXM175, MXM190, Lower, Start Serial: ACM259776

1шт.

2

82030129

FLEXIBLE HOSE

MXM120, MXM130, MXM140, MXM155, Serial Range: -ACM259775

1шт.

2

82030403

FLEXIBLE HOSE

MXM175, MXM190, Serial Range: -ACM259775

1шт.

2

87313016

FLEXIBLE HOSE

MXM120, MXM130, MXM140, MXM155, Raise, Start Serial: ACM259776

1шт.

2

87312948

FLEXIBLE HOSE

MXM175, MXM190, Raise, Start Serial: ACM259776

1шт.

3

11107621

BOLT,Hex, M10 x 70mm, Cl 8.8

3шт.

3

83931335

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

1шт.

4

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

5

82022172

CLAMP,2 Hoses

8шт.

6

82035337

FLEXIBLE HOSE

2шт.

7

82020398

FLEXIBLE HOSE

Front Diff. Lock

1шт.

8

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

90 Duro

4шт.

9

89992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

90 Duro, .489" ID x .070" Thk

2шт.

10

82026192

SUPPORT

1шт.

11

82019177

WIRE HARNESS

Front Suspension Jump Lead

1шт.
