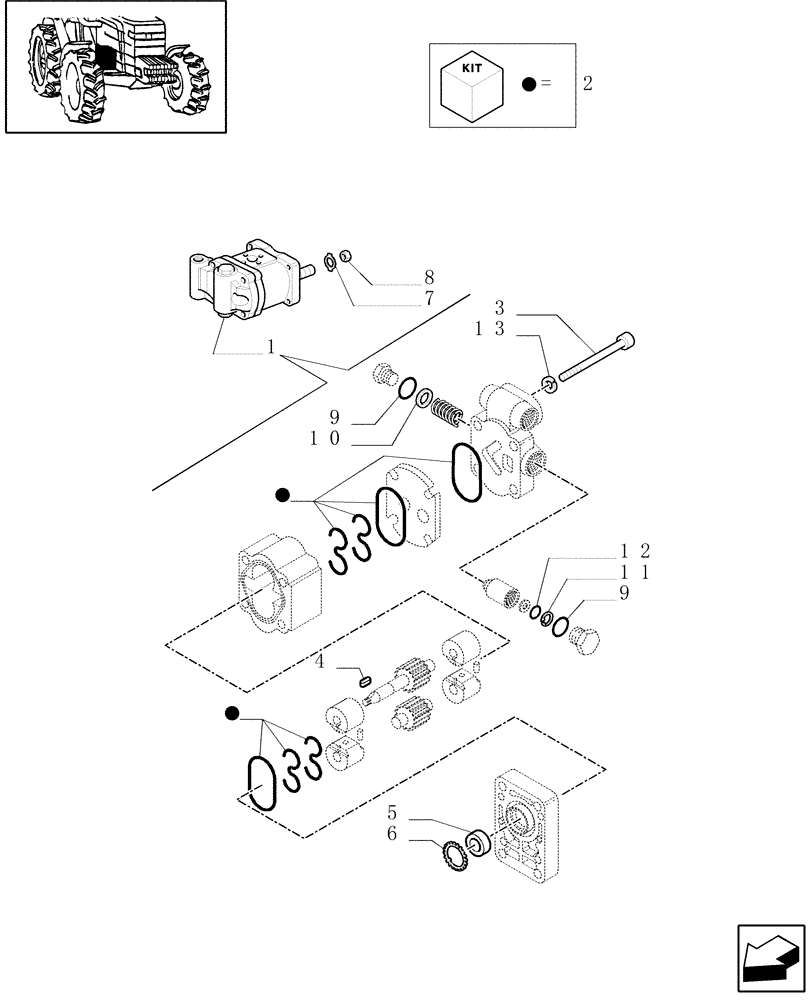

Запчасти Case IH MXM120 (1.32.8/01B) - PUMP BREAKDOWN FOR HYDRAULIC SYSTEM AND LIFT - C5531 (03) - TRANSMISSION

1

5180277

HYDRAULIC PUMP,318.33 CC

Bosch

1шт.

5180277R

REMAN-HYD PUMP

MXM120, MXM130, MXM140 All (6/02-)

1шт.

5180277C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

42481597

SEAL KIT

1шт.

3

5120497

SCREW,Sq Hd, M10 x 1.25 x 114mm

4шт.

4

8273918

KEY

1шт.

5

7984178

KIT

Bushing

1шт.

6

9967847

LOCK WASHER

1шт.

7

8273920

LOCK WASHER

1шт.

8

8273919

NUT

1шт.

9

84019077

O-RING

21 x 2.5

2шт.

10

9970274

RING

1шт.

11

9970276

LOCKING RING

1шт.

12

9970275

LOCKING RING

1шт.

13

9970277

WASHER

4шт.
