(1.32.8/ A[05]) - PUMPS FOR HYDRAULIC SYSTEM AND LIFT - BREAKDOWN

Запчасти Case IH MXM120 (1.32.8/ A[05]) - PUMPS FOR HYDRAULIC SYSTEM AND LIFT - BREAKDOWN (03) - TRANSMISSION

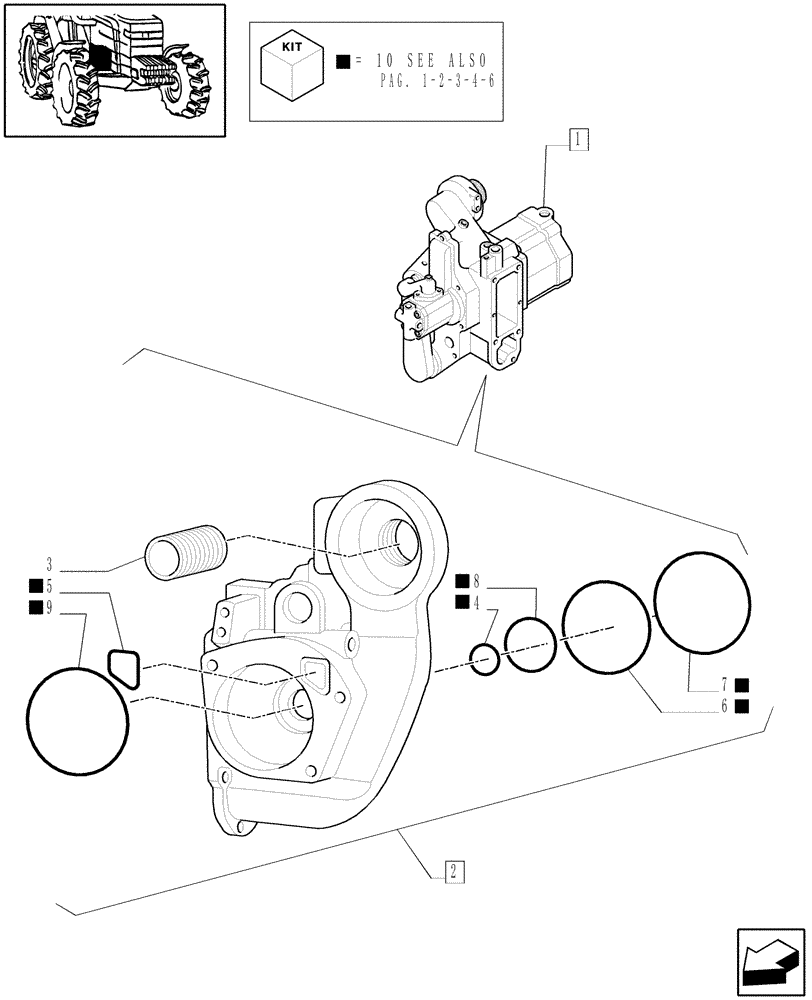

Схема запчастей Case IH MXM120 - (1.32.8/ A[05]) - PUMPS FOR HYDRAULIC SYSTEM AND LIFT - BREAKDOWN (03) - TRANSMISSION
10
10
3
10
2
10
7
6
10
4
5
8
1
10
10
9
pag. 1-2-3-4-6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5185294

HYDRAULIC PUMP,45 CC

Assy

1шт.

1

5185294R

REMAN-HYD PUMP

Remanufactured Hydraulic Pump

1шт.

1

5185294C

CORE-HYDRAULIC PUMP

Return Number, HYDRAULIC PUMP

1шт.

2

82031035

KIT

Center Housing

1шт.

3

82031220

HYD CONNECTOR

1шт.

4

82036306

SEAL,13.82mm ID x 19.3mm OD x 2.59mm Thk

30.0 x 47.0 x 7.0

1шт.

5

82036311

O-RING

39.6 x 2.4 N117

2шт.

6

82036315

O-RING

139.5 x 3.0

1шт.

7

82036313

O-RING

69.6 x 2.4 N117

1шт.

8

82031032

O-RING

1шт.

9

82036314

O-RING,3mm Thk x 114.5mm ID, 70 Duro

114.5 x 3.0

1шт.

10

82036258

SEAL KIT

1шт.
