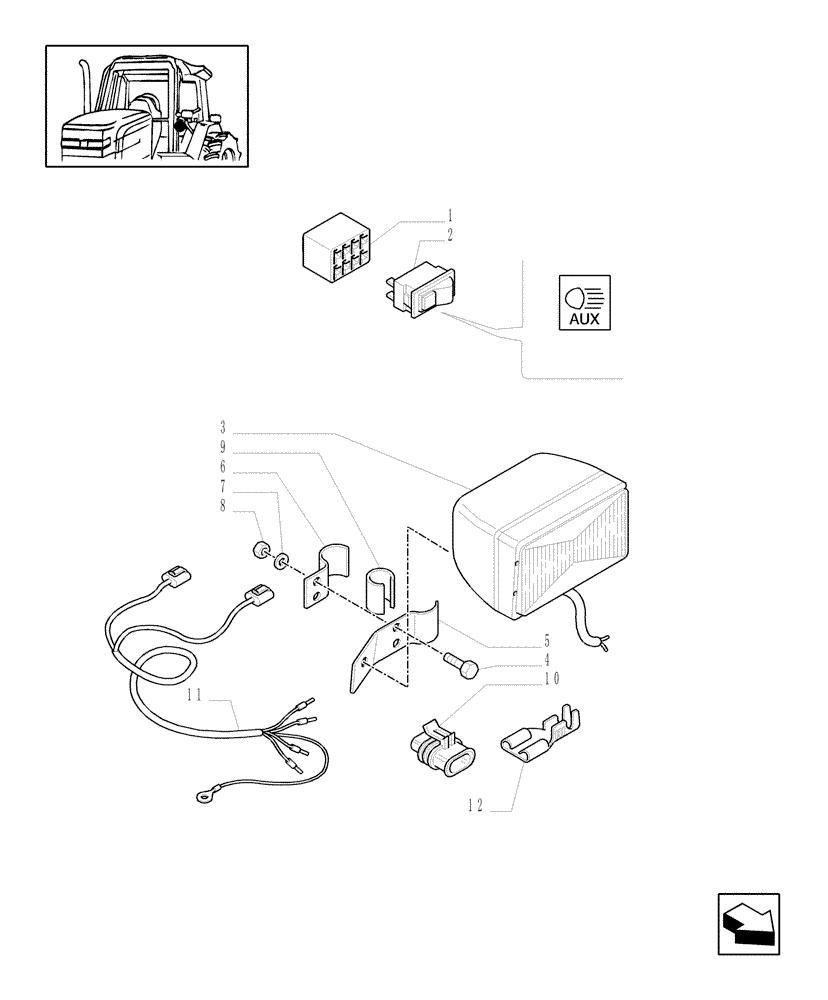

Запчасти Case IH MXM120 (1.91.7/02) - (VAR.177/1) AUXILIARY LIGHTS KIT (RIGHT HAND DRIVE) (10) - OPERATORS PLATFORM/CAB

1

5148448

MULTIPOLE CONNECTOR,Female, 8 Pole

1шт.

2

82019845

LIGHT SWITCH

Auxiliary Lights

1шт.

3

82019521

RH HEADLAMP

2шт.

4

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

5

82020406

BRACKET

LH

1шт.

5

82020407

BRACKET

RH

1шт.

6

82020408

BRACKET

2шт.

7

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

8

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

4шт.

9

82019994

PAD

2шт.

10

87680689

ELEC CONNECTOR

2шт.

11

82019667

WIRE HARNESS

1шт.

12

12062644

CABLE TERMINAL

4шт.
