(1.93.3/ G[02]) - (VAR.964) DELUXE AIR SEAT WITH REELING SEAT BELT AND HEATED CUSHION - BREAKDOWN

Запчасти Case IH MXM130 (1.93.3/ G[02]) - (VAR.964) DELUXE AIR SEAT WITH REELING SEAT BELT AND HEATED CUSHION - BREAKDOWN (10) - OPERATORS PLATFORM/CAB

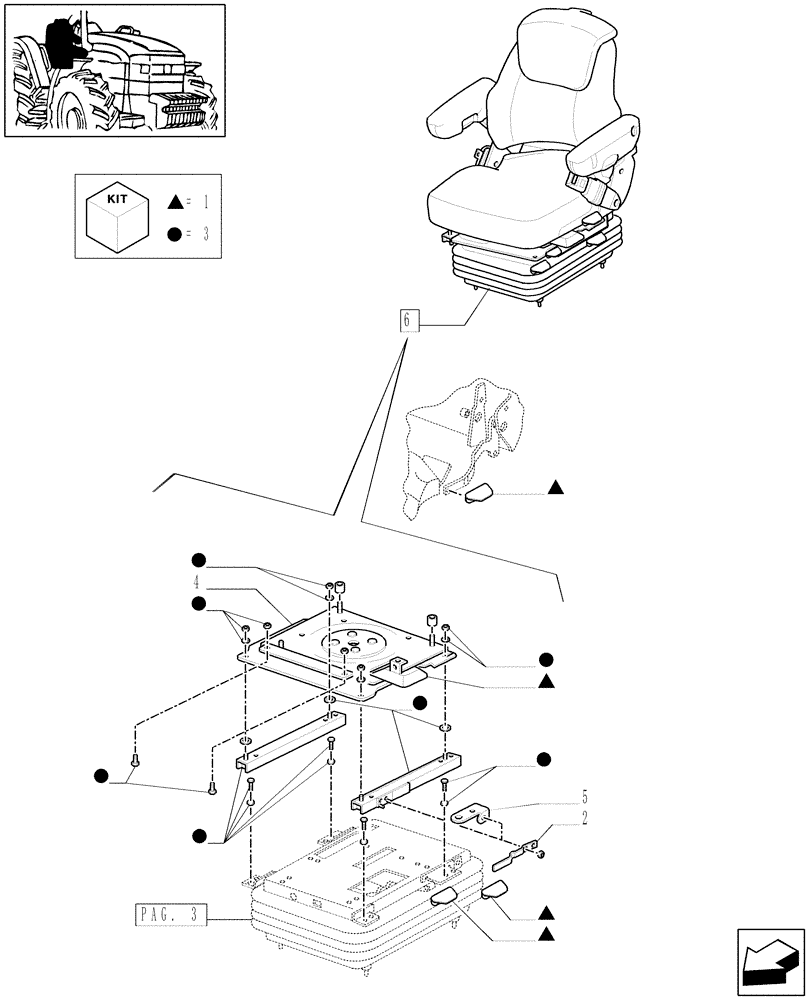

Схема запчастей Case IH MXM130 - (1.93.3/ G[02]) - (VAR.964) DELUXE AIR SEAT WITH REELING SEAT BELT AND HEATED CUSHION - BREAKDOWN (10) - OPERATORS PLATFORM/CAB
5
2
1
pag. 3
6
3
3
1
3
1
1
1
3
3
4
3
3
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87363496

DRIVER SEAT

Assy

1шт.

2

82020840

KIT

Swivel

1шт.

3

82020839

KIT

Knobs

1шт.

4

82020809

SERVICE KIT

Slide Lever

1шт.

5

82020923

BRACKET

Lever Support

1шт.

6

82020814

SERVICE KIT

Slide

1шт.
