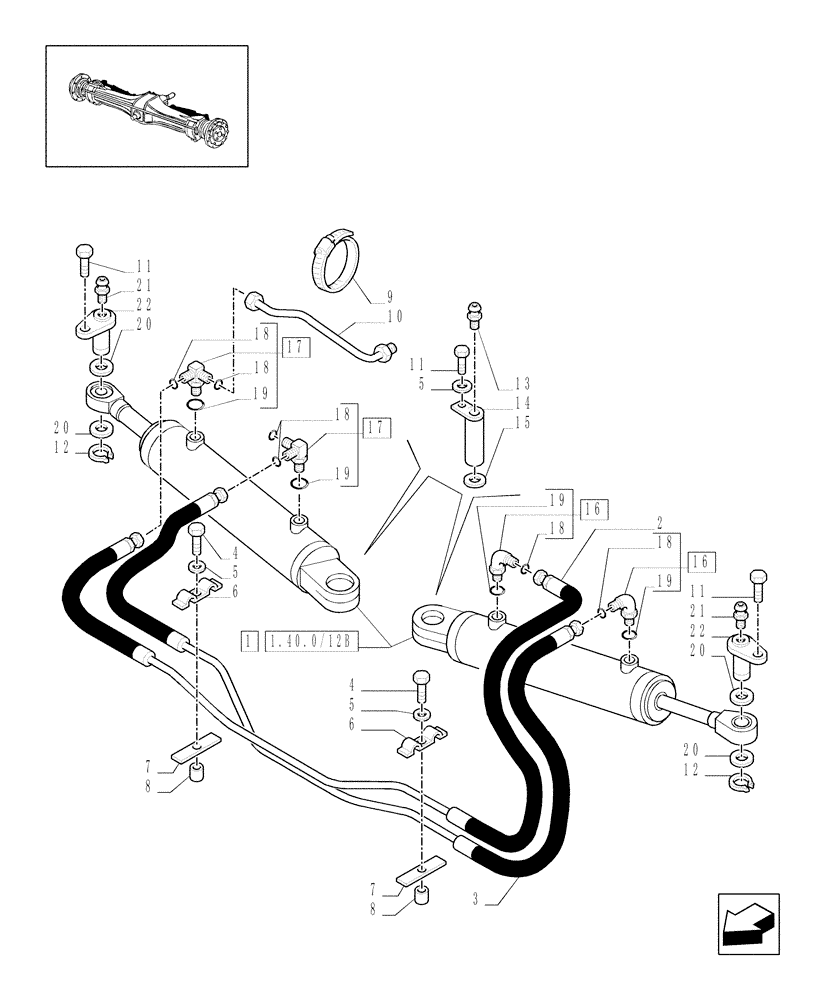

Запчасти Case IH MXM140 (1.40.9/12) - (VAR.519-520) CLASS 4 4WD FRONT AXLE WITH SUSPENSIONS AND "TERRALOCK" - POWER STEERING CYLINDER (04) - FRONT AXLE & STEERING

1

5164022

STEERING CYLINDER

2шт.

2

5188440

HYDRAULIC HOSE,10.00mm OD x 1450.00mm

RH

1шт.

3

5188439

HYDRAULIC HOSE,10.00mm OD x 1450.00mm

LH

1шт.

4

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

3шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

6

5188504

BRACKET

2шт.

7

5188503

BRACKET

2шт.

8

13605811

SPACER,8.50mm ID x 18.00mm OD x 10.00mm, STL, ZND

2шт.

9

13000990

COLLAR,60mm - 80mm, Worm Gear

D=60-80

1шт.

10

5188452

HYD TUBE

1шт.

11

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

12

11067376

SNAP RING,M25, Ext

2шт.

13

5191671

LUBE NIPPLE,45 Degree, M14 x 1.5

2шт.

14

5198013

PIN,24.97mm OD x 100mm L

2шт.

15

5111576

SPACER,25.5mm ID x 34mm OD x 11mm L

2шт.

16

47127165

90 ELBOW

2шт.

17

5188443

90 ELBOW

11/16"-16, M14 x 1.5

2шт.

18

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

6шт.

19

14437785

O-RING,11.3mm ID x 2.4mm

4шт.

20

5111573

SPACER,25.5mm ID x 34mm OD x 5.9mm L

25.5 x 34

4шт.

21

87414

LUBE NIPPLE,1/4" - 28

2шт.

22

5171707

PIN,24.97mm OD x 91mm L

2шт.
