(1.40.3/05[02]) - (VAR.420) 4WD FRONT AXLE WITH SUSPENSIONS AND TERRALOCK - SEMI POWER SHIFT - SUPPORT

Запчасти Case IH MXM155 (1.40.3/05[02]) - (VAR.420) 4WD FRONT AXLE WITH SUSPENSIONS AND TERRALOCK - SEMI POWER SHIFT - SUPPORT (04) - FRONT AXLE & STEERING

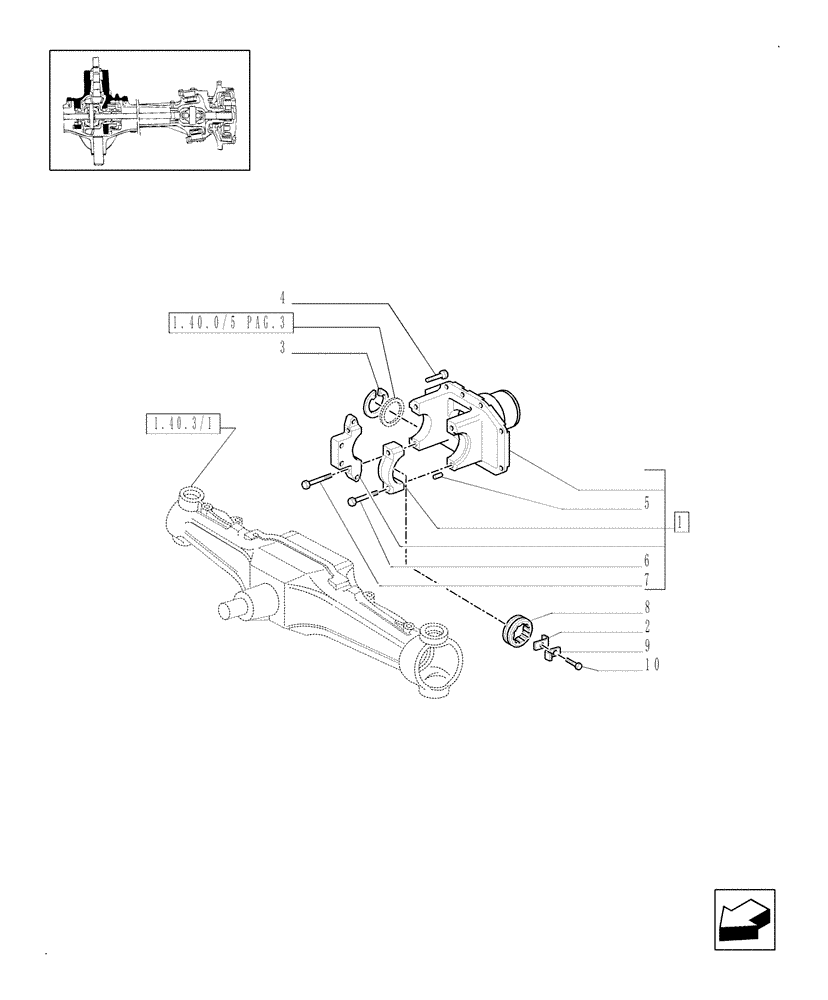

Схема запчастей Case IH MXM155 - (1.40.3/05[02]) - (VAR.420) 4WD FRONT AXLE WITH SUSPENSIONS AND TERRALOCK - SEMI POWER SHIFT - SUPPORT (04) - FRONT AXLE & STEERING
1
7
6
3
1.40.3/1
2
4
10
1.40.0/5 pag.3
9
8
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5190844

SUPPORT

1шт.

2

4966243

ADJUSTING PLATE

1шт.

3

11075476

SNAP RING,M110, Int

1шт.

4

16217734

BOLT,Hex, M16 x 1.5 x 50mm, Cl 10.9, Full Thd

16шт.

4

14360524

HEX SOC SCREW,M12 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

5

4966530

DOWEL

M6 x 18

4шт.

6

14255330

SCREW,M14 x 1.5 x 75mm

M14 x 1.5 x 75

2шт.

7

14255731

LOCK BOLT,Hex, M14 x 1.5 x 90mm, Cl 10.9

2шт.

8

5110423

RING NUT

M115 x 15

1шт.

9

562659

PLATE

1шт.

10

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.
