(1.40.6/10B) - (VAR.463) 4WD FRONT AXLE WITH SUSPENSIONS, FULL POWER SHIFT - ARTICULATED HALF-AXLE

Запчасти Case IH MXM155 (1.40.6/10B) - (VAR.463) 4WD FRONT AXLE WITH SUSPENSIONS, FULL POWER SHIFT - ARTICULATED HALF-AXLE (04) - FRONT AXLE & STEERING

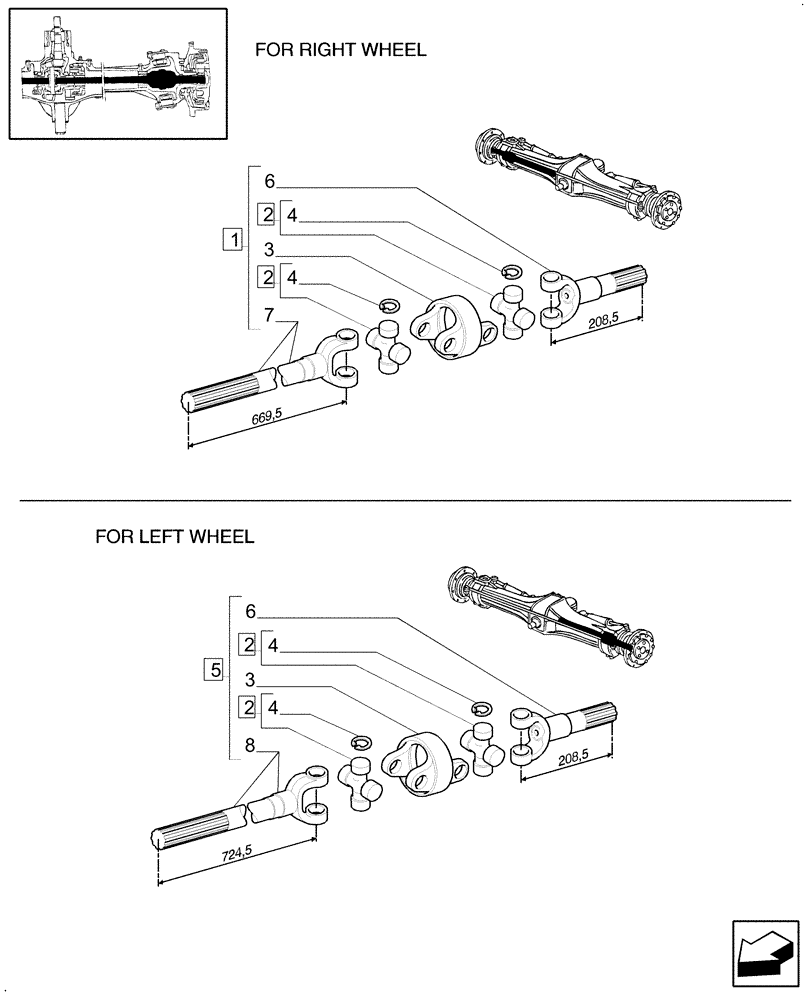

Схема запчастей Case IH MXM155 - (1.40.6/10B) - (VAR.463) 4WD FRONT AXLE WITH SUSPENSIONS, FULL POWER SHIFT - ARTICULATED HALF-AXLE (04) - FRONT AXLE & STEERING
8
6
2
4
7
3
4
3
1
6
4
2
4
2
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5174475

AXLE-SHAFT, ARTICULA

Assy, RH

1шт.

2

5191482

SPIDER

2шт.

3

5191485

YOKE

1шт.

4

5191483

CIRCLIP

8шт.

5

5174473

AXLE-SHAFT, ARTICULA

Assy, LH

1шт.

6

5191484

SHAFT

Outer, Short

1шт.

7

5191486

SHAFT

Inner, Long, RH

1шт.

8

5191487

SHAFT

Inner, Long, LH

1шт.
