(1.82.713/03A) - (VAR.414) TRAILER BRAKE BREAKDOWN VALVE FOR LOAD SENSING CLOSED CENTRE (CCLS)

Запчасти Case IH MXM155 (1.82.713/03A) - (VAR.414) TRAILER BRAKE BREAKDOWN VALVE FOR LOAD SENSING CLOSED CENTRE (CCLS) (07) - HYDRAULIC SYSTEM

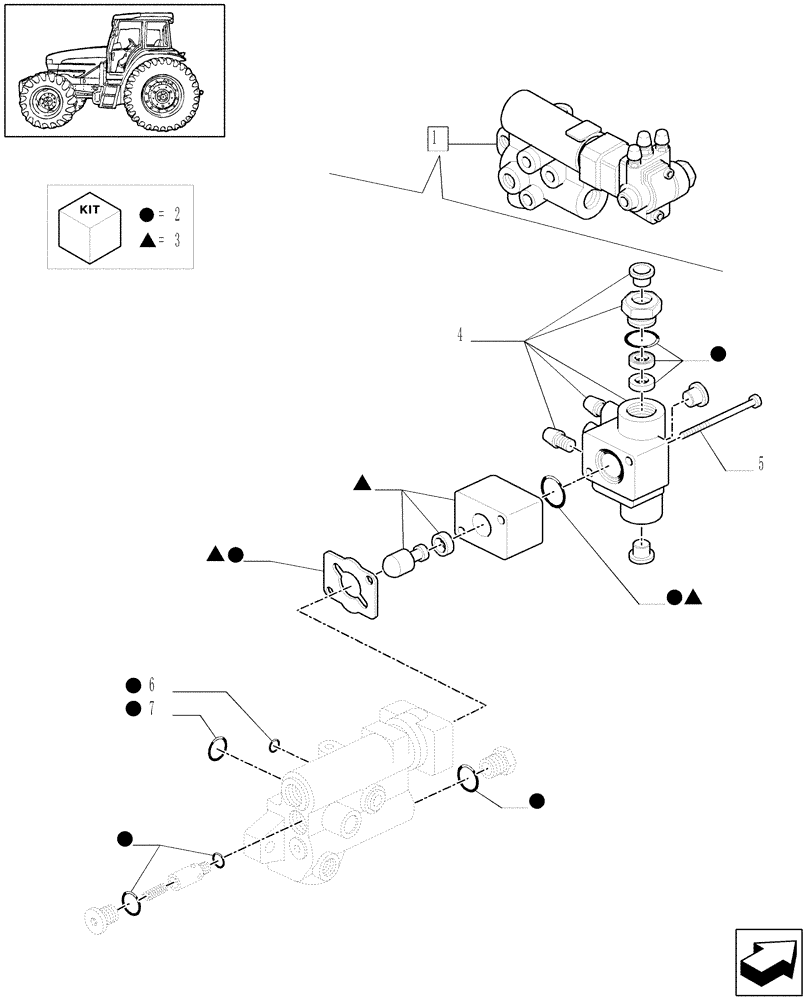

Схема запчастей Case IH MXM155 - (1.82.713/03A) - (VAR.414) TRAILER BRAKE BREAKDOWN VALVE FOR LOAD SENSING CLOSED CENTRE (CCLS) (07) - HYDRAULIC SYSTEM
2
3
4
2
2
2
2
3
2
2
3
1
3
2
7
5
3
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47126818

BRAKE VALVE

1шт.

2

47128438

SEAL KIT

1шт.

3

47128439

REPAIR KIT

1шт.

4

47128437

VALVE

1шт.

5

5190750

SCREW

M6 x 70

2шт.

6

81862879

O-RING,2.4mm Thk x 7.6mm ID

7.6 x 2.4

1шт.

7

81862872

O-RING,2.4mm Thk x 19.6mm ID

19.6 x 2.4

1шт.
