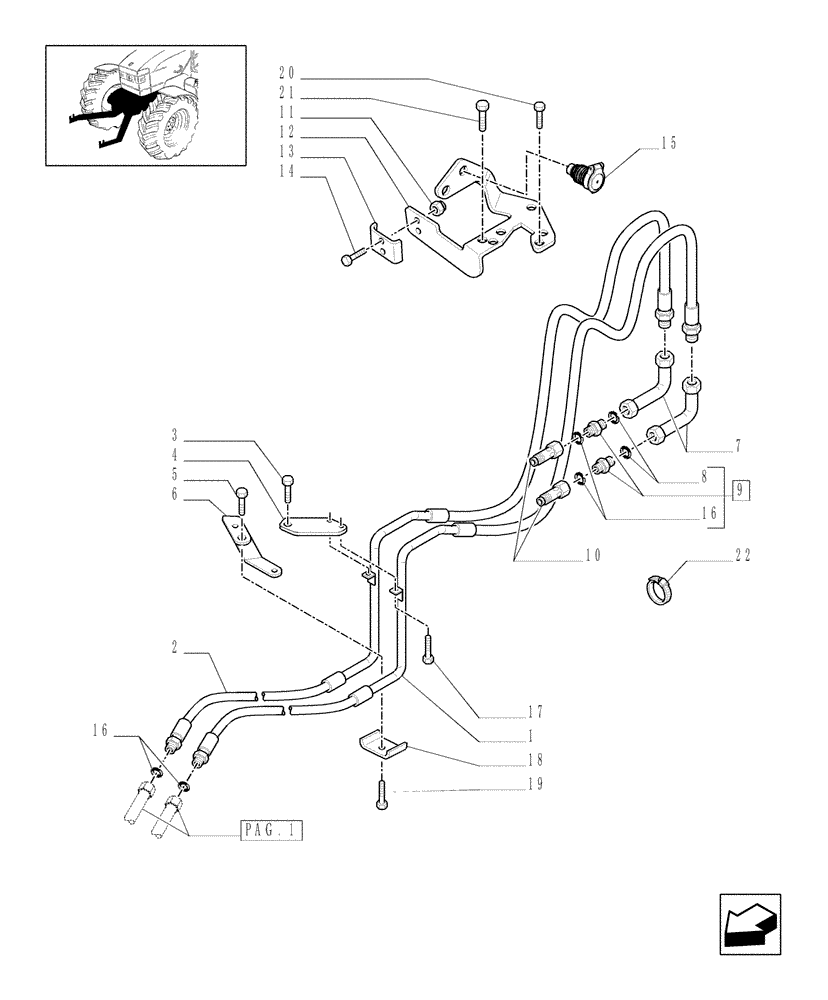

Запчасти Case IH MXU100 (1.81.9/04[02]) - (VAR.505) 2 FRONT MTD (RHS) HYD. COUPLERS OPERATED FROM 1 RCV FOR FRONT HPL - PIPES AND COUPLERS (07) - HYDRAULIC SYSTEM

1

47057273

HYD TUBE

Incl.16, MXU100, MXU110

1шт.

1

47057275

HYD TUBE

Incl.16, MXU115, MXU125, MXU135

1шт.

2

47057274

HYD TUBE

Incl.16, MXU100, MXU110

1шт.

2

47057276

HYD TUBE

Incl.16, MXU115, MXU125, MXU135

1шт.

3

15859421

BOLT,Hex, M16 x 20mm, Cl 8.8, Full Thd

1шт.

4

47057210

BRACKET

1шт.

5

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

6

47057170

SUPPORT

1шт.

7

47057034

TUBE

2шт.

8

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

2шт.

9

5185524

HYD CONNECTOR

2шт.

10

83972881

COUPLING

2шт.

11

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

2шт.

12

47057604

SUPPORT

1шт.

13

47057073

CLAMP

1шт.

14

16044021

SCREW,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

15

47057077

SOCKET

2шт.

16

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

17

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

18

47057074

CLAMP,48.6mm x 30mm

1шт.

19

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

20

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

21

14442021

SCREW,Flat Csk Hd, M8 x 1.25 x 20mm, Cl 8.8

1шт.

22

14560287

CABLE TIE,207.00mm L

COLLAR

3шт.
