(1.91.5/01) - (VAR.545) ROOF WITH LOW PROFILE - FRONT WINDSHIELD WIPER

Запчасти Case IH MXU100 (1.91.5/01) - (VAR.545) ROOF WITH LOW PROFILE - FRONT WINDSHIELD WIPER (10) - OPERATORS PLATFORM/CAB

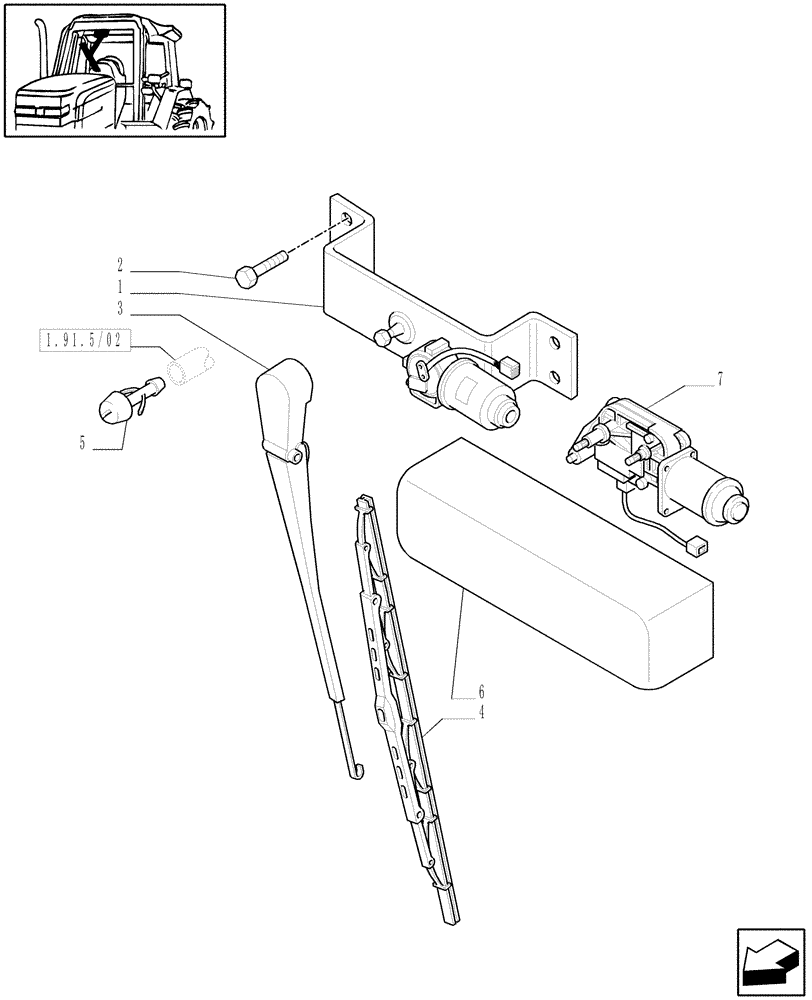

Схема запчастей Case IH MXU100 - (1.91.5/01) - (VAR.545) ROOF WITH LOW PROFILE - FRONT WINDSHIELD WIPER (10) - OPERATORS PLATFORM/CAB
5
4
6
2
7
1.91.5/02
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87348560

WIPER MOTOR

, Serial Range: -C5902

1шт.

2

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

3шт.

3

82030972

WIPER ARM,Single, 418.7mm L

1шт.

4

82030990

WIPER BLADE,Single, 550mm L

1шт.

5

82030998

NOZZLE

1шт.

6

87326960

COVER

1шт.

7

87701513

WIPER MOTOR

, Start Serial: D5902

1шт.
