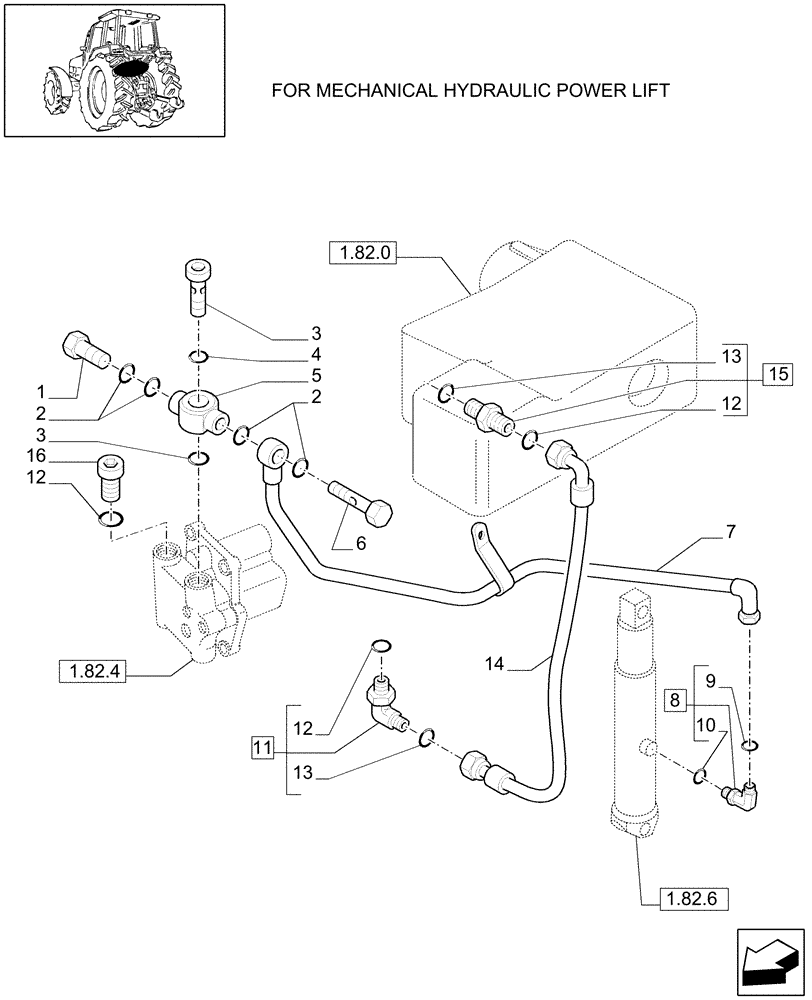

Запчасти Case IH MXU110 (1.82.1/02[01]) - (VAR.349-349/1) 2 OR 4 CONTROL VALVES CCLS - LIFTER, LINES - C5151 (07) - HYDRAULIC SYSTEM

1

10300611

PLUG,M14 x 1.5 x 14, Cl5.8

1шт.

2

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

D=14

3шт.

3

47131904

BANJO BOLT

M18X1,5X39

1шт.

4

80221964

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

(M21.95 ID x 1.78 Thk)

2шт.

5

47131903

RING

1шт.

6

10184311

BANJO BOLT,M14 x 1.5 x 27mm

M14X1,5

1шт.

7

47133581

HYD TUBE

LH

1шт.

8

5194076

ELBOW,90 Deg, 11/16-16 ORFS x M16 x 1.5 ORB

11/16", M16 x 1.5

1шт.

9

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

10

14437885

O-RING,13.30mm ID x 2.40mm

2шт.

11

5192286

90 ELBOW,1-14" ORFS x M22 x 1.5

1"-14, M22 x 1.5

1шт.

12

14438085

O-RING,19.3mm ID x 2.4mm

3шт.

13

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

14

47124771

FLEXIBLE HOSE

1"-14

1шт.

15

5194408

HYD CONNECTOR

1"-14, M22X1,5

1шт.

16

10118811

PLUG,M22 x 1.5 x 14, Cl5.8

1шт.
