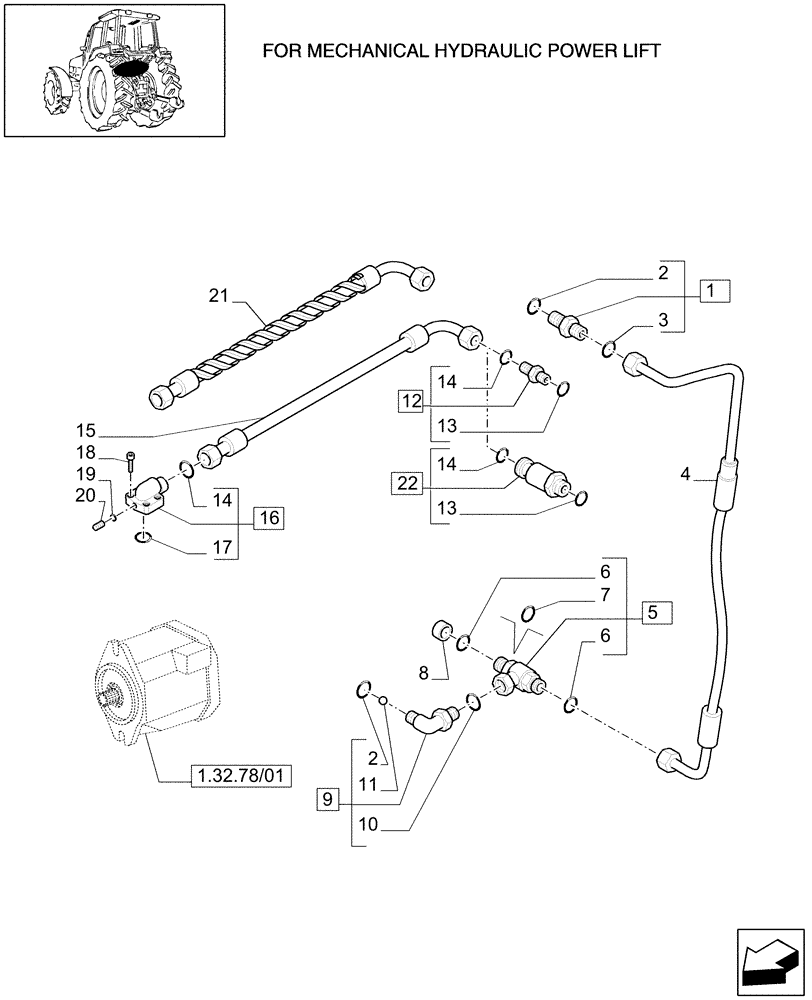

Запчасти Case IH MXU115 (1.82.1/03[02]) - (VAR.353-353/1) 2/4 CCLS CONTROL VALVES WITH TRAILER BRAKE VALVE - HYDRAULIC LIFT PIPES (07) - HYDRAULIC SYSTEM

1

5185045

HYD CONNECTOR

9/16"-18, M12X1,5, Serial Range: -C5151

1шт.

2

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

2шт.

3

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

4

47130587

FLEXIBLE HOSE

9/16"-18

1шт.

5

82018814

CHECK VALVE,9/16" - 18 JIC x 9/16" - 18 ORFS x 9/16" - 18 ORFS

1шт.

6

89825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

7

80165202

O-RING

2шт.

8

5189973

PLUG

9/16"-18

1шт.

9

47126659

ELBOW,90 Deg, 9/16-18 ORFS x 7/16-20 ORB

9/16"-18, 7/16"-20, Serial Range: -C5082

1шт.

9

47135296

90 ELBOW,9/16"-18 x 7/16"-20

, Start Serial: D5082

1шт.

10

5185507

O-RING,8.92mm ID x 1.83mm Width

M8.92 ID x 1.83 Thk, Serial Range: -C5082

1шт.

10

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

, Start Serial: D5082

1шт.

11

47126655

FILTER STRAINER

, Serial Range: -C5082

1шт.

12

5197215

HYD CONNECTOR,1"3/16-12 ORFS x M27 x 2 ORB

1-3/16"-12, M27 x 2, Serial Range: -C5151

1шт.

13

14438185

O-RING,24mm ID x 3mm

1шт.

14

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

2шт.

15

47128470

FLEXIBLE HOSE

1-13/16"-12, Serial Range: -C5151

1шт.

16

47130523

FLANGE

1шт.

17

14463781

O-RING,0.139" Thk x 1.296" ID, -219, Cl 7, 75 Duro

1шт.

18

14420321

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

19

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

20

10118711

PLUG,M14 x 1.5 x 12, Cl5.8

1шт.

21

87312959

FLEXIBLE HOSE,16mm ID x 540mm L, SAE 100R16

560MM, Start Serial: D5151

1шт.

22

87317008

HYD CONNECTOR

1"3/16-12, Start Serial: D5151

1шт.
