(1.82.7/22[02]) - (VAR.354/1) 4 (EDC) CONTROL VALVES WITH TRAILER BRAKE VALVE (ITALY) AND ASSOCIATED PARTS

Запчасти Case IH MXU115 (1.82.7/22[02]) - (VAR.354/1) 4 (EDC) CONTROL VALVES WITH TRAILER BRAKE VALVE (ITALY) AND ASSOCIATED PARTS (07) - HYDRAULIC SYSTEM

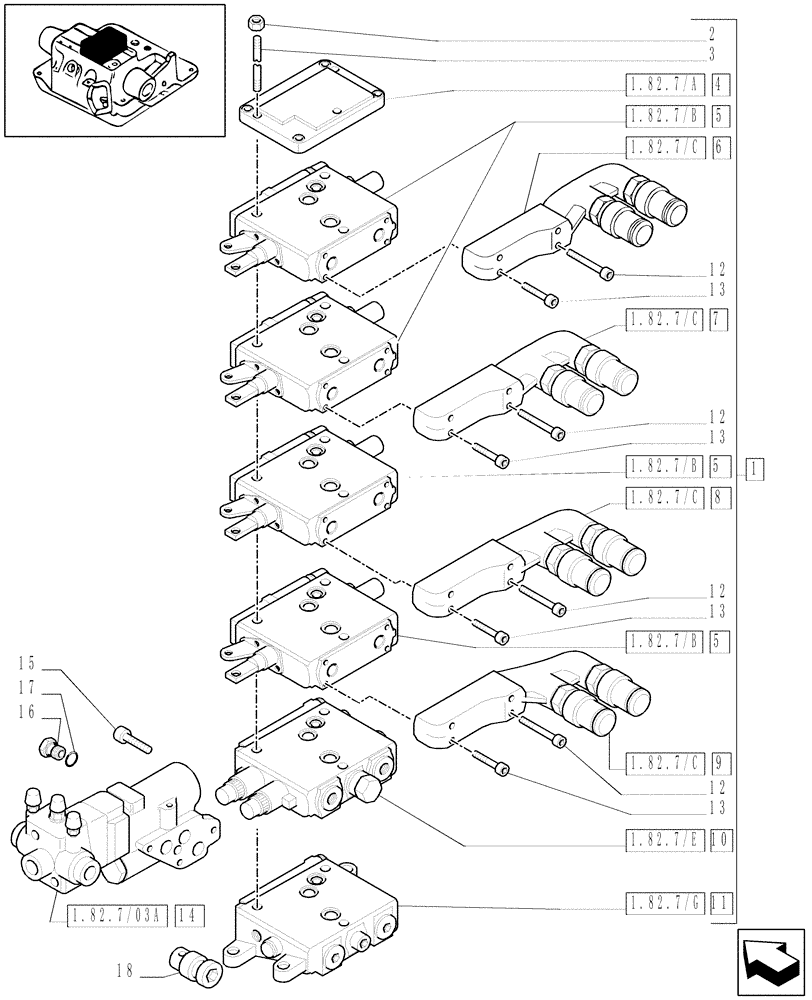

Схема запчастей Case IH MXU115 - (1.82.7/22[02]) - (VAR.354/1) 4 (EDC) CONTROL VALVES WITH TRAILER BRAKE VALVE (ITALY) AND ASSOCIATED PARTS (07) - HYDRAULIC SYSTEM
13
13
1.82.7/c
1.82.7/g
5
14
5
1.82.7/03a
10
13
5
1.82.7/c
8
6
15
16
1.82.7/c
18
12
1.82.7/b
2
3
1
4
1.82.7/b
9
11
1.82.7/a
1.82.7/b
17
12
12
1.82.7/e
12
13
1.82.7/c
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47124662

CONTROL VALVE

1шт.

2

16100821

NUT,M8, Cl 10

3шт.

3

47129476

THREADED TIE-ROD,M8

ROD

3шт.

4

5192188

BODY

1шт.

5

5199099

VALVE

4шт.

6

47123065

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

6

87381965

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

7

47123063

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

7

87381964

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

8

47123061

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

8

87381963

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

9

47123059

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

9

87381958

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

10

5192187

CONTROL VALVE

1шт.

84175671R

REMAN-HYD VALVE

MXU100, MXU115, MXU125 all CASE IH TRACTOR (7/03-) Reman for New P/N 5192187

1шт.

84175671C

CORE-VALVE HYD

Return Number

1шт.

11

5192186

DISTRIBUTOR

1шт.

12

47129475

HEX SOC SCREW,M6 x 50mm

8шт.

13

47129474

HEX SOC SCREW,M6 x 35mm

8шт.

14

5192069

BRAKE VALVE

M8X35

1шт.

15

14359424

SCREW,M8 x 75mm, Cl 8.8

M8X70

1шт.

16

47131496

PLUG,Hex, M12 x 1

M12X1

2шт.

17

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

1шт.

18

47131575

VALVE PRESSURE RELIE

1шт.
