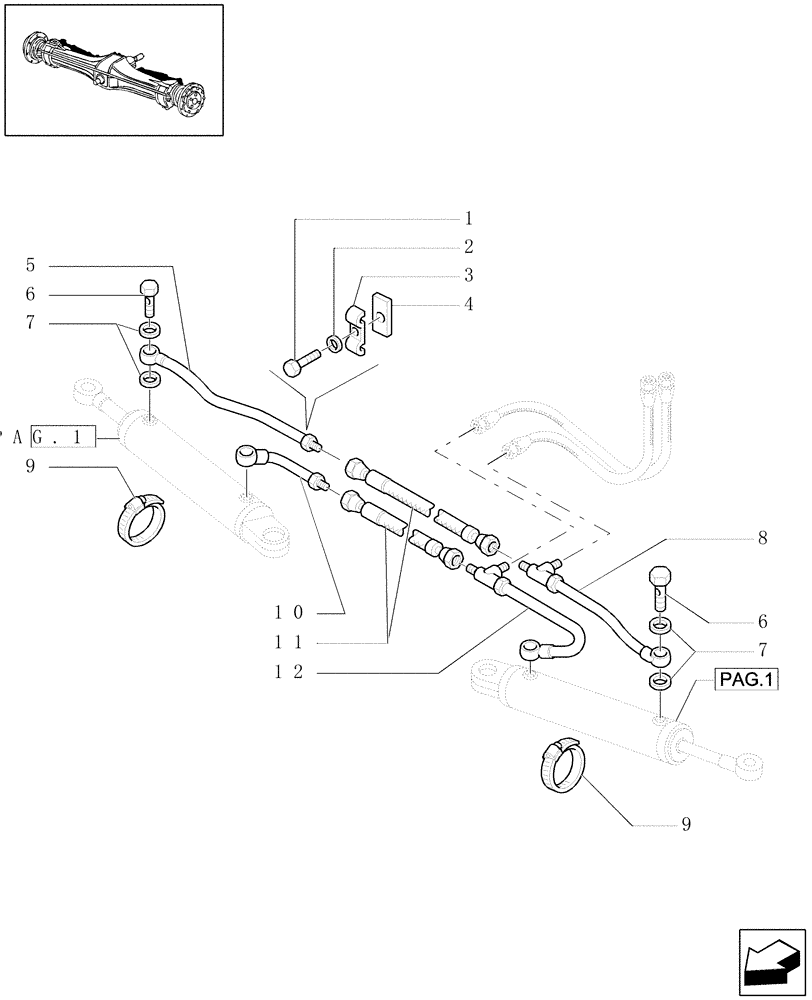

Запчасти Case IH MXU115 (1.40.0/12[02]) - 4WD CL.2 FRONT AXLE - HYDRAULIC STEERING CYLINDER - PIPES (04) - FRONT AXLE & STEERING

1

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

2

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

3

4999554

CLAMP,2 Hoses

2шт.

4

5138294

SUPPORT

2шт.

5

5199543

HYD TUBE

1шт.

6

4864083

BANJO BOLT,M14 x 1.5 x 30mm

M14 x 1.5 x 30

4шт.

7

44906168

SEAL,14.86mm ID x 22.23mm OD x 3mm Thk

8шт.

8

5199554

HYD TUBE

1шт.

9

13000990

COLLAR,60mm - 80mm, Worm Gear

60-80

2шт.

10

5199550

HYD TUBE

1шт.

11

47123149

HYDRAULIC HOSE,8.00 mm ID x 540.00 mm, SAE J514

2шт.

12

5199552

HYD TUBE

1шт.
