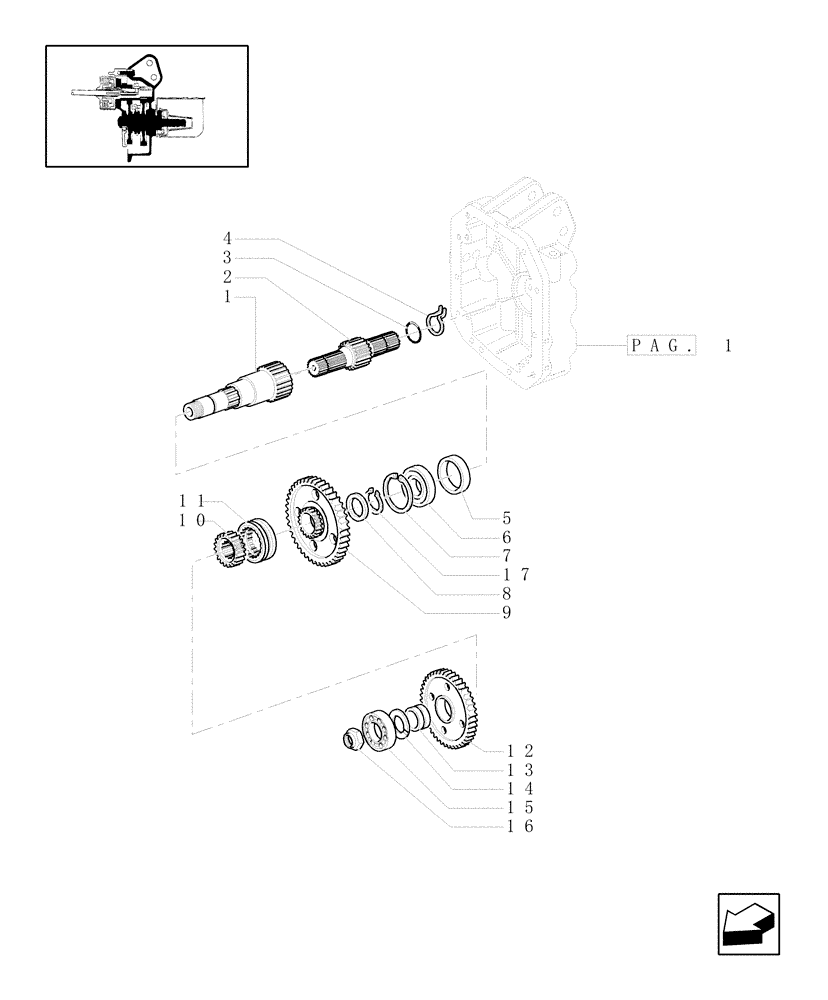

Запчасти Case IH MXU130 (1.80.1/01[02]) - (VAR.096) POWER TAKE-OFF 540/1000 RPM - SHAFTS AND GEARS (07) - HYDRAULIC SYSTEM

1

47131254

DRIVE SHAFT,65T, 262mm L

540/1000 RPM

1шт.

2

47130743

PTO SHAFT,6T Splines, 182mm L

540 RPM

1шт.

3

14459881

O-RING,2.237" ID x 2.443" OD x 0.103"

1шт.

4

87347166

SNAP RING,M45 x 3.12mm Thk, Ext

1шт.

5

5196487

OIL SEAL,80.00mm ID x 100.00 OD x 10.00mm

1шт.

6

26794670

BALL BEARING,65mm ID x 120mm OD x 23mm W

65X120X23

1шт.

7

11075976

SNAP RING,M120, Int

D=125

1шт.

8

47131733

RING,65mm ID x 88mm OD x 6.7mm Thk

1шт.

9

5192158

GEAR

1шт.

10

5151488

DRIVE BUSHING

1шт.

11

5129513

SYNCHRONIZER,24T

1шт.

12

5192160

GEAR

1шт.

13

5192401

BUSHING,40mm ID x 48mm OD x 32mm L

1шт.

14

5192170

ANTI-WRAP PLATE

1шт.

15

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

40 x 90 x 23 mm

1шт.

16

5123114

RING NUT,Hex, M36 x 1.5

M36 x 1.5

1шт.

17

5143130

SNAP RING,M60, Ext x 4mm

1шт.
