(1.80.5/ A) - (VAR.173-558) FRONT POWER TAKE-OFF - CLUTCH - BREAKDOWN

Запчасти Case IH MXU130 (1.80.5/ A) - (VAR.173-558) FRONT POWER TAKE-OFF - CLUTCH - BREAKDOWN (07) - HYDRAULIC SYSTEM

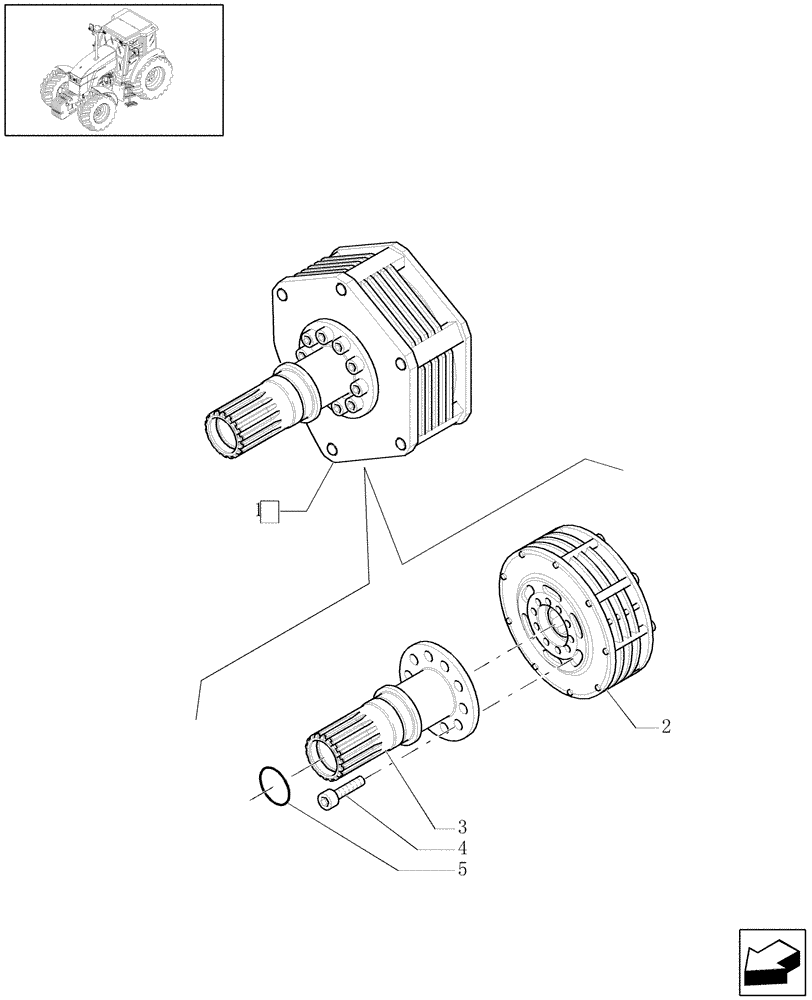

Схема запчастей Case IH MXU130 - (1.80.5/ A) - (VAR.173-558) FRONT POWER TAKE-OFF - CLUTCH - BREAKDOWN (07) - HYDRAULIC SYSTEM
5
4
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87315409

PTO CLUTCH

Includes, Serial Range: Ref.2-5

1шт.

2

87308837

PTO CLUTCH,220.5mm OD

1шт.

3

47127442

PTO SHAFT,22T

1шт.

4

13030430

HEX SOC SCREW,M10 x 1.25 x 22mm

M10X1,25X22

10шт.

5

14459180

O-RING,45.69mm ID x 2.62"

1шт.
