(1.82.7/02A) - (VAR.704-713) 2 CONTROL VALVES WITH MECHANICAL JOYSTICK FOR LOADER - PARTS COMPONENTS

Запчасти Case IH MXU130 (1.82.7/02A) - (VAR.704-713) 2 CONTROL VALVES WITH MECHANICAL JOYSTICK FOR LOADER - PARTS COMPONENTS (07) - HYDRAULIC SYSTEM

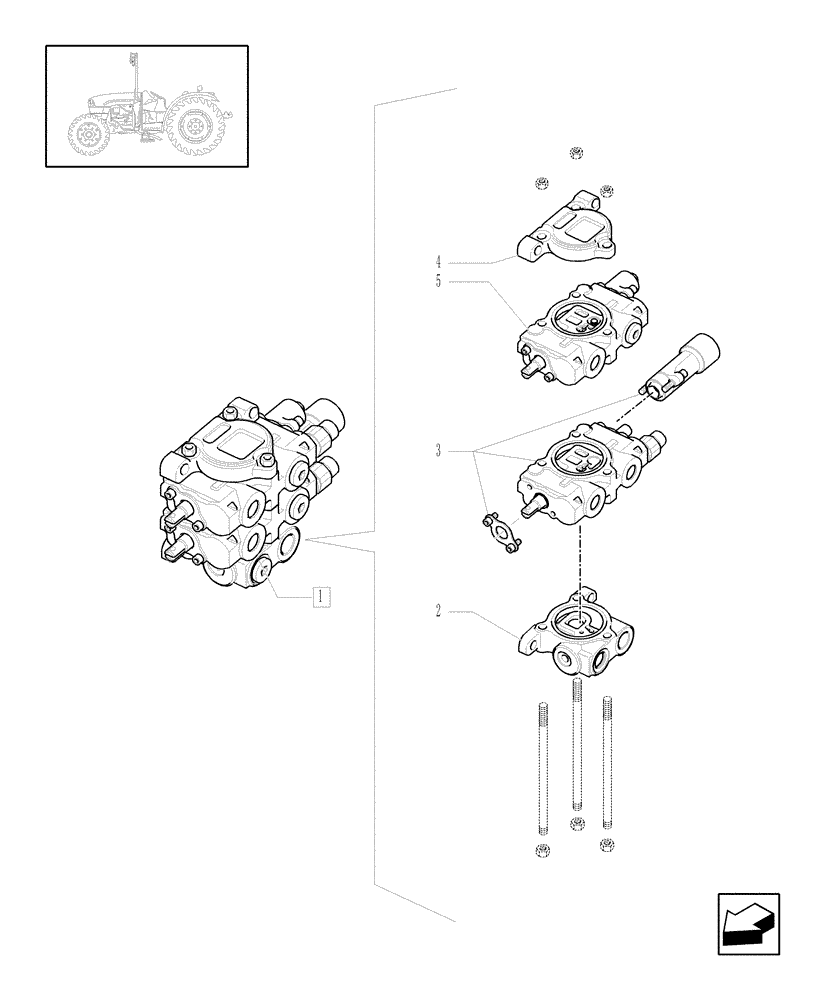

Схема запчастей Case IH MXU130 - (1.82.7/02A) - (VAR.704-713) 2 CONTROL VALVES WITH MECHANICAL JOYSTICK FOR LOADER - PARTS COMPONENTS (07) - HYDRAULIC SYSTEM
4
2
5
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87324660

CONTROL VALVE

ASSY

1шт.

2

87324666

HYD VALVE SECTION

Inlet Section

1шт.

3

87324665

HYD VALVE SECTION

Float Detent

1шт.

4

87324663

HYD VALVE SECTION

End Cap

1шт.

5

87324664

HYD VALVE SECTION

No Float

1шт.
