(25.102.090) - VAR - 758795, 758796 - FRONT AXLE, DIFFERENTIAL LOCK, LINE

Запчасти Case IH OPTUM 270 CVT (25.102.090) - VAR - 758795, 758796 - FRONT AXLE, DIFFERENTIAL LOCK, LINE (25) - FRONT AXLE SYSTEM

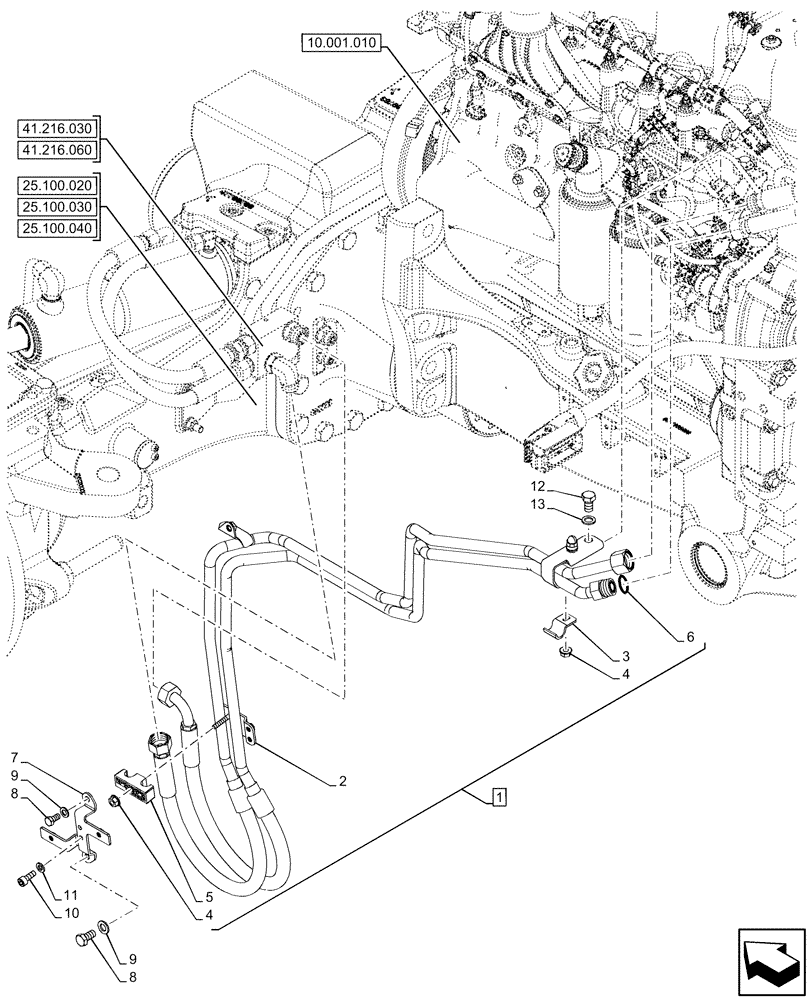

Схема запчастей Case IH OPTUM 270 CVT - (25.102.090) - VAR - 758795, 758796 - FRONT AXLE, DIFFERENTIAL LOCK, LINE (25) - FRONT AXLE SYSTEM
25.100.030
6
8
1
8
9
7
5
4
2
10
12
3
11
13
9
4
10.001.010
41.216.060
41.216.030
25.100.040
25.100.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47829469

PIPE

ASSY, Front End Steering, Incl 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

Pipe, Incl in 1

1шт.

3

5178447

BRACKET

1шт.

4

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

5

87571442

BRACKET

1шт.

6

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

7

47769822

BRACKET

1шт.

8

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

9

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

10

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

2шт.

11

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

12

43151

BOLT,Hex, M12 x 20mm, Cl 8.8, Full Thd

1шт.

13

13507401

WASHER,12.2mm ID x 20mm OD x 2mm Thk

1шт.
