(33.350.020) - VAR - 758035 - 758036 - ANTILOCK BRAKING SYSTEM (ABS), AIR RESERVOIR, AIR CONTROL, PRESSURE LIMITER

Запчасти Case IH OPTUM 270 CVT (33.350.020) - VAR - 758035 - 758036 - ANTILOCK BRAKING SYSTEM (ABS), AIR RESERVOIR, AIR CONTROL, PRESSURE LIMITER (33) - BRAKES & CONTROLS

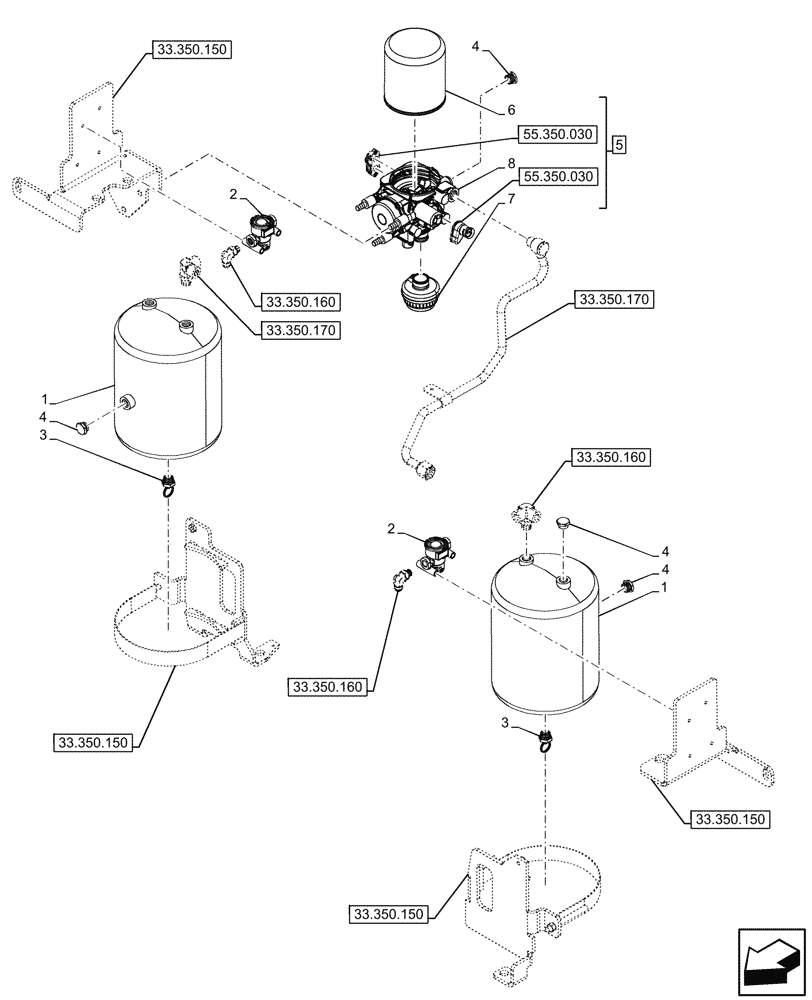

Схема запчастей Case IH OPTUM 270 CVT - (33.350.020) - VAR - 758035 - 758036 - ANTILOCK BRAKING SYSTEM (ABS), AIR RESERVOIR, AIR CONTROL, PRESSURE LIMITER (33) - BRAKES & CONTROLS
33.350.150
5
3
3
6
4
8
4
4
2
4
7
1
2
1
55.350.030
55.350.030
33.350.170
33.350.170
33.350.160
33.350.160
33.350.160
33.350.150
33.350.150
33.350.150
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84170918

AIR RESERVOIR

2шт.

2

84394097

PRESSURE LIMITER

2шт.

3

82004266

DRAIN

2шт.

4

82014913

PLUG,M22 x 1.5 x 9mm L

4шт.

5

84394092

AIR CONTROL

ASSY, Incl 6 - 8

1шт.

See also Air Control Components in Figure 55.350.030

1шт.

6

47679253

CARTRIDGE

on Pneumatic Trailer Brakes Air Dryer, 165mm, W/ ABS

1шт.

7

47679344

BREATHER

1шт.

8

NSS

NOT SOLD SEPARAT

Body, Incl in 5

1шт.
