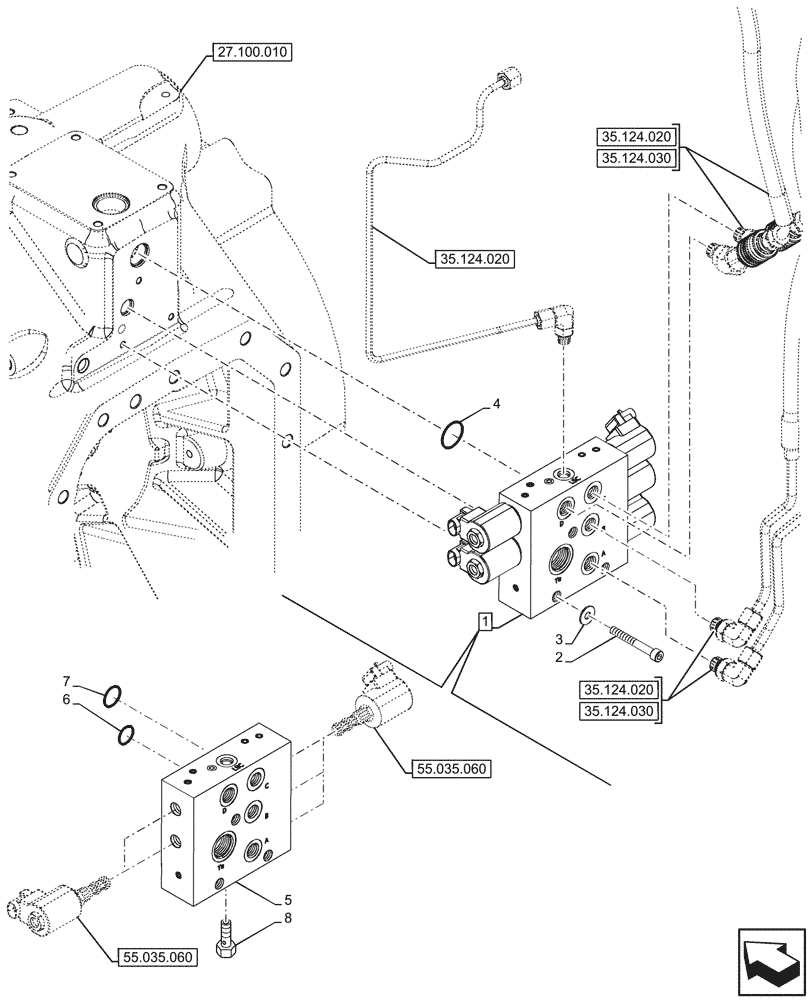

Запчасти Case IH OPTUM 270 CVT (35.124.010) - VAR - 758762, 758766 - REAR, 3 POINT HITCH, CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

87749159

SOLENOID VALVE,12V, 5.9 Ohm, 23W, 210 bar

ASSY, Incl 5 - 8

1шт.

See also Solenoid Valve Components in Figure 55.035.060

1шт.

2

14359321

HEX SOC SCREW,M8 x 65mm, Cl 8.8

3шт.

3

11193979

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

3шт.

4

86625093

O-RING,29.82mm ID x 2.38mm Thk, Cl 7

1шт.

5

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

6

14458086

O-RING,1.112" ID x 0.103" Width

1шт.

7

14456981

O-RING,0.424" ID x 0.103" Width

1шт.

8

87749309

FLOW CONTROL VALVE

1шт.
