(37.106.050) - VAR - 758113 - AUTOMATIC PICK-UP HITCH, W/ ANTILOCK BRAKING SYSTEM (ABS)

Запчасти Case IH OPTUM 270 CVT (37.106.050) - VAR - 758113 - AUTOMATIC PICK-UP HITCH, W/ ANTILOCK BRAKING SYSTEM (ABS) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

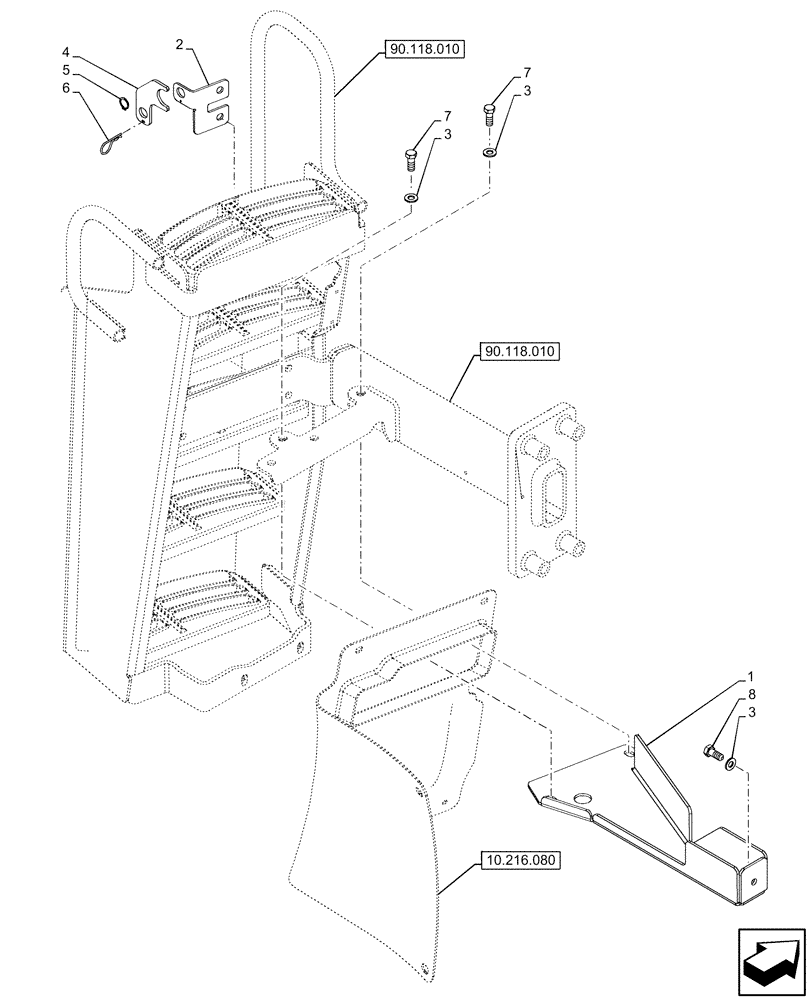

Схема запчастей Case IH OPTUM 270 CVT - (37.106.050) - VAR - 758113 - AUTOMATIC PICK-UP HITCH, W/ ANTILOCK BRAKING SYSTEM (ABS) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
90.118.010
8
1
3
7
5
3
4
3
7
6
2
10.216.080
90.118.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47737095

SUPPORT

1шт.

2

47737093

BRACKET

1шт.

3

10520001

WASHER,12.2mm ID x 22mm OD x 3mm Thk

3шт.

4

47737094

PLATE

1шт.

5

11066871

CIRCLIP,M20

1шт.

6

370539

COTTER PIN,4.4mm x 52.8mm L

1шт.

7

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

8

11112421

SCREW,Hex, M12 x 30mm, Cl 8.8

1шт.
