(41.216.040) - VAR - 758795, 758796 - FRONT AXLE, STEERING CYLINDER HYD. LINE, CYLINDER, COMPONENTS

Запчасти Case IH OPTUM 270 CVT (41.216.040) - VAR - 758795, 758796 - FRONT AXLE, STEERING CYLINDER HYD. LINE, CYLINDER, COMPONENTS (41) - STEERING

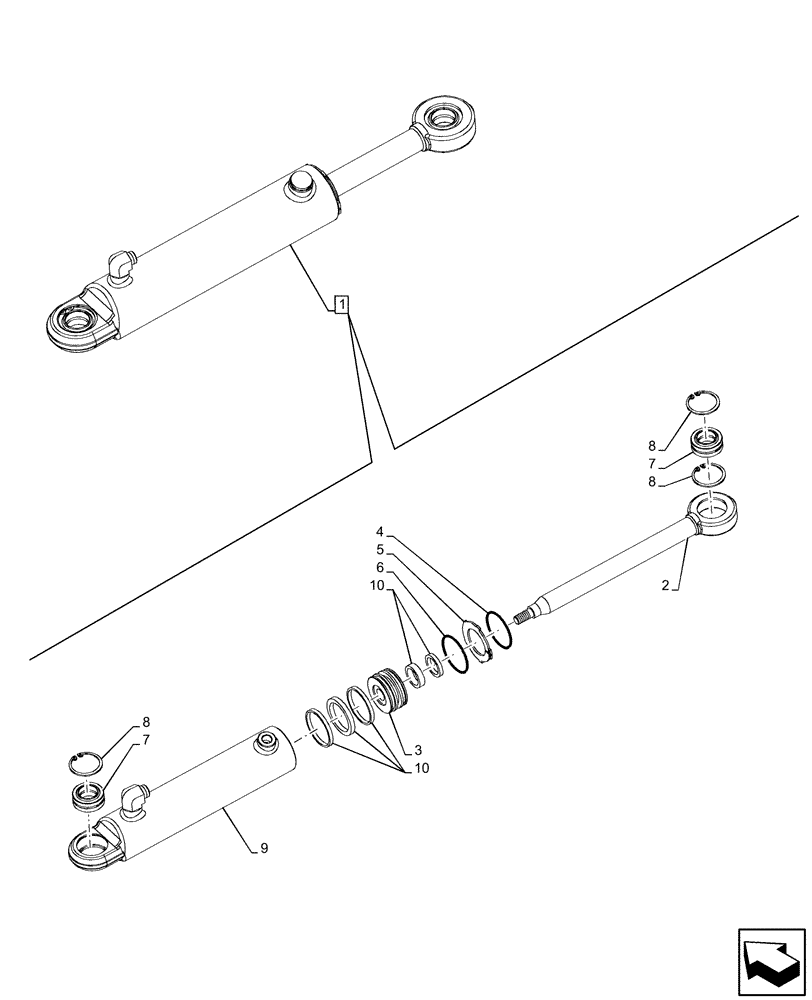

Схема запчастей Case IH OPTUM 270 CVT - (41.216.040) - VAR - 758795, 758796 - FRONT AXLE, STEERING CYLINDER HYD. LINE, CYLINDER, COMPONENTS (41) - STEERING
8
9
10
4
7
8
6
3
2
7
10
8
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47782996

STEERING CYLINDER,36mm Rod, 246mm Stroke

ASSY, Incl 2 - 10

2шт.

2

NSS

NOT SOLD SEPARAT

Rod, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Piston, Incl in 1

1шт.

4

47502205

CYLINDER END CAP,76.2mm Bore, 36mm Rod, mm W

1шт.

5

47436962

RING

1шт.

6

47436960

RING

1шт.

7

47633238

SPHERICAL BEARING,35mm ID x 55mm OD x 25mm W

35mm ID x 55mm OD x 25mm

2шт.

8

47436955

RING

3шт.

9

NSS

NOT SOLD SEPARAT

Cylinder Body, Incl in 1

1шт.

10

47436943

SEAL KIT

1шт.
