(55.024.030) - VAR - 391138, 758022, 758870, 759053 - TRANSMISSION, LUBRICATION, PUMP, SOLENOID

Запчасти Case IH OPTUM 270 CVT (55.024.030) - VAR - 391138, 758022, 758870, 759053 - TRANSMISSION, LUBRICATION, PUMP, SOLENOID (55) - ELECTRICAL SYSTEMS

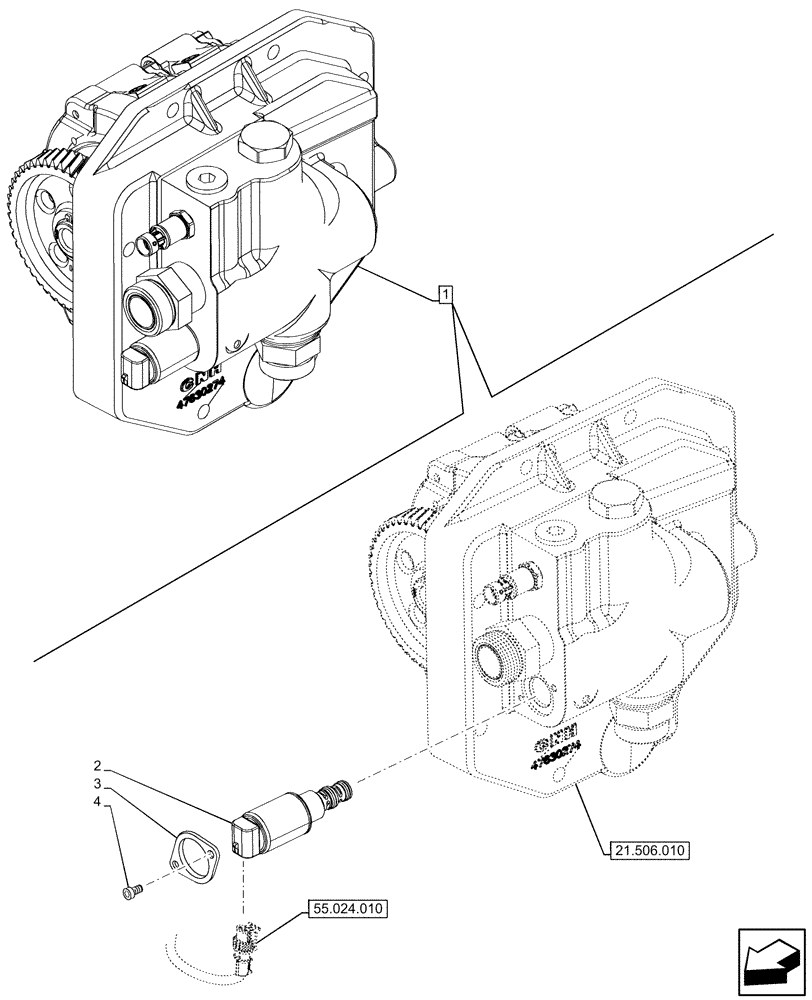

Схема запчастей Case IH OPTUM 270 CVT - (55.024.030) - VAR - 391138, 758022, 758870, 759053 - TRANSMISSION, LUBRICATION, PUMP, SOLENOID (55) - ELECTRICAL SYSTEMS
55.024.010
2
1
3
4
21.506.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

ASSY, Incl 2 - 4, only Components available for Service

1шт.

See also Lubrication Pump Components in Figure 21.506.020, 55.021.010

1шт.

2

84408149

SOLENOID VALVE,12V DC, 7.3Ohm

1шт.

3

5194826

BRACKET

1шт.

4

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

2шт.
