(55.050.070) - VAR - 758787, 758788, 758789 - AIR CONDITIONER, BLOWER, MOUNTING PARTS

Запчасти Case IH OPTUM 270 CVT (55.050.070) - VAR - 758787, 758788, 758789 - AIR CONDITIONER, BLOWER, MOUNTING PARTS (55) - ELECTRICAL SYSTEMS

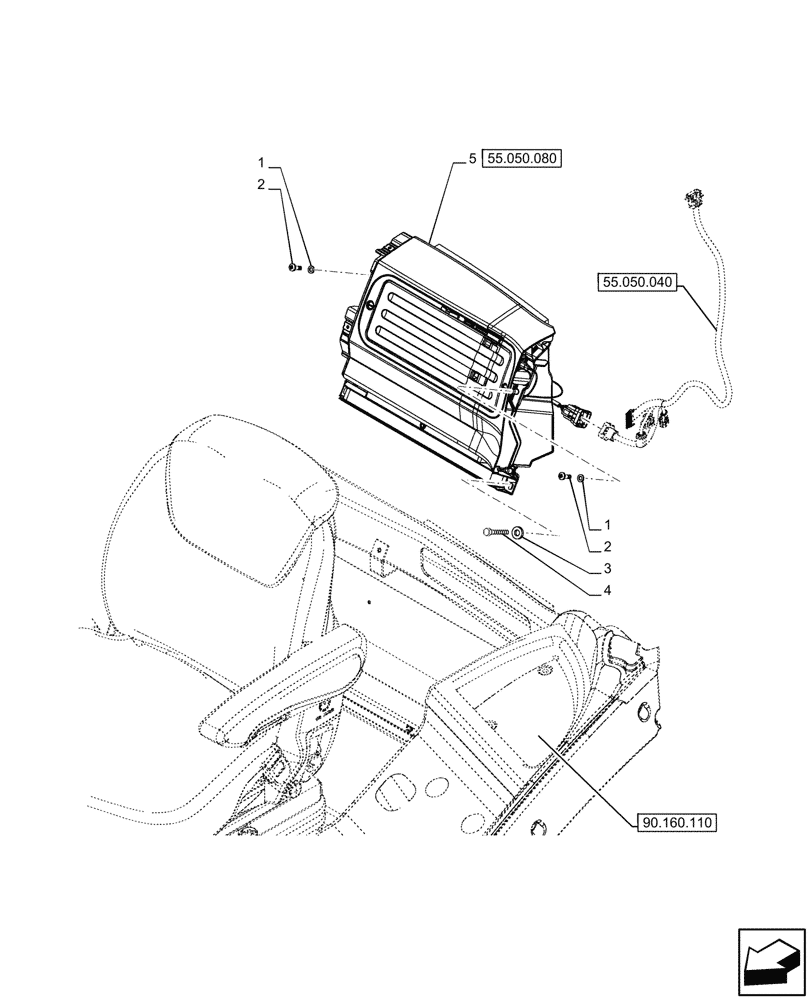

Схема запчастей Case IH OPTUM 270 CVT - (55.050.070) - VAR - 758787, 758788, 758789 - AIR CONDITIONER, BLOWER, MOUNTING PARTS (55) - ELECTRICAL SYSTEMS
55.050.040
2
1
1
3
2
4
5
55.050.080
90.160.110
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

2

13276617

SCREW,Pozidriv Pan Hd, M6 x 25mm, Cl 5.8, Full Thd

2шт.

3

84188433

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

4

87578958

SELF-TAP SCREW,M6.3 x 1.8 x 25mm

2шт.

5

47800241

BLOWER,12V

ASSY

1шт.
