(55.160.010) - VAR - 758768, 758769, 758770, 758771, 758772, 758773, 759086, 759304, 759305, 759306, 759307, 759308 - FRONT, 3 POINT HITCH, SENSOR

Запчасти Case IH OPTUM 270 CVT (55.160.010) - VAR - 758768, 758769, 758770, 758771, 758772, 758773, 759086, 759304, 759305, 759306, 759307, 759308 - FRONT, 3 POINT HITCH, SENSOR (55) - ELECTRICAL SYSTEMS

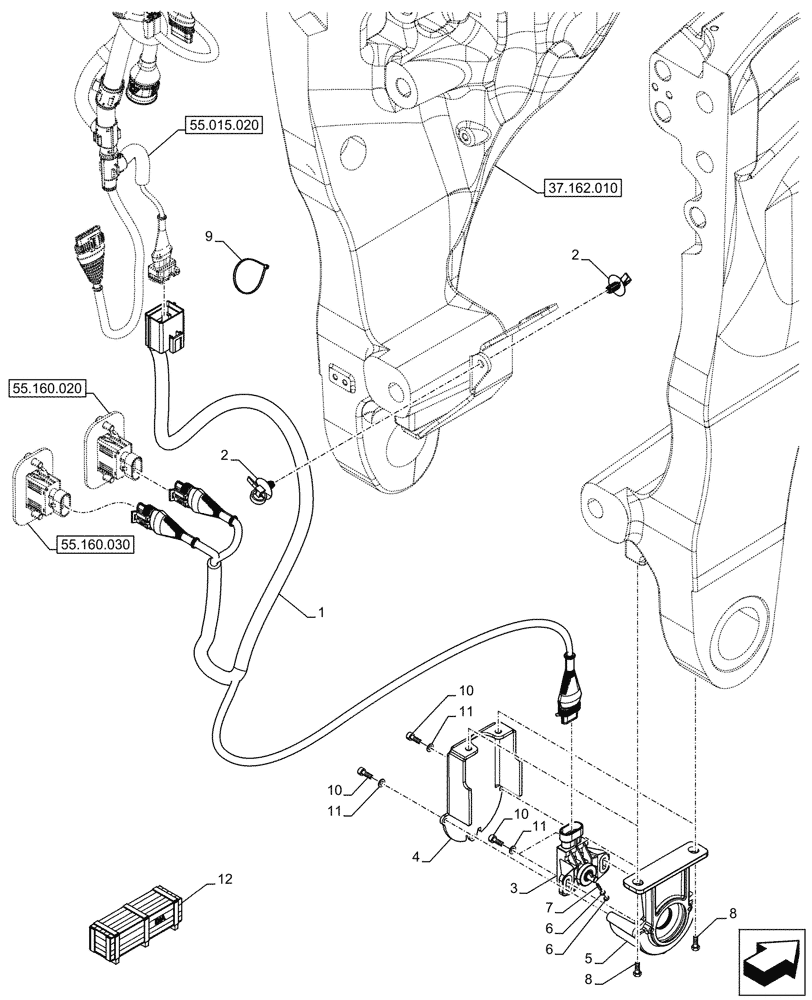

Схема запчастей Case IH OPTUM 270 CVT - (55.160.010) - VAR - 758768, 758769, 758770, 758771, 758772, 758773, 759086, 759304, 759305, 759306, 759307, 759308 - FRONT, 3 POINT HITCH, SENSOR (55) - ELECTRICAL SYSTEMS
55.015.020
6
10
10
1
6
10
7
4
8
11
3
2
11
5
2
11
8
9
12
37.162.010
55.160.020
55.160.030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47750753

WIRE HARNESS

Front HPL Extension

1шт.

2

82033028

CABLE TIE,170mm L

2шт.

3

84479305

SENSOR

Angle Position

1шт.

4

84408286

COVER

1шт.

5

84479284

SUPPORT

1шт.

6

84482300

O-RING,1.5 Thk x 2mm ID, Cl 5

2шт.

7

84206980

PIN,2mm OD x 20mm L, Slotted

1шт.

8

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

9

14560187

COLLAR,199mm L

1шт.

10

14303021

SCREW,M4 x 12mm, Cl 8.8, Full Thd

5шт.

11

14497701

WASHER,4.3mm ID x 8mm OD x 0.8mm Thk

5шт.

12

718062034

DIA KIT, TRACTOR

Front Hydraulic Power Lift, Incl 1 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

12

731033014

DIA KIT, TRACTOR

Front Hydraulic Power Lift, Incl 1 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
