(55.160.020) - VAR - 758768, 758769, 758770, 758771, 758772, 758773, 759086, 759304, 759305, 759306, 759307, 759308 - FRONT, 3 POINT HITCH, EXTERNAL, SWITCH

Запчасти Case IH OPTUM 270 CVT (55.160.020) - VAR - 758768, 758769, 758770, 758771, 758772, 758773, 759086, 759304, 759305, 759306, 759307, 759308 - FRONT, 3 POINT HITCH, EXTERNAL, SWITCH (55) - ELECTRICAL SYSTEMS

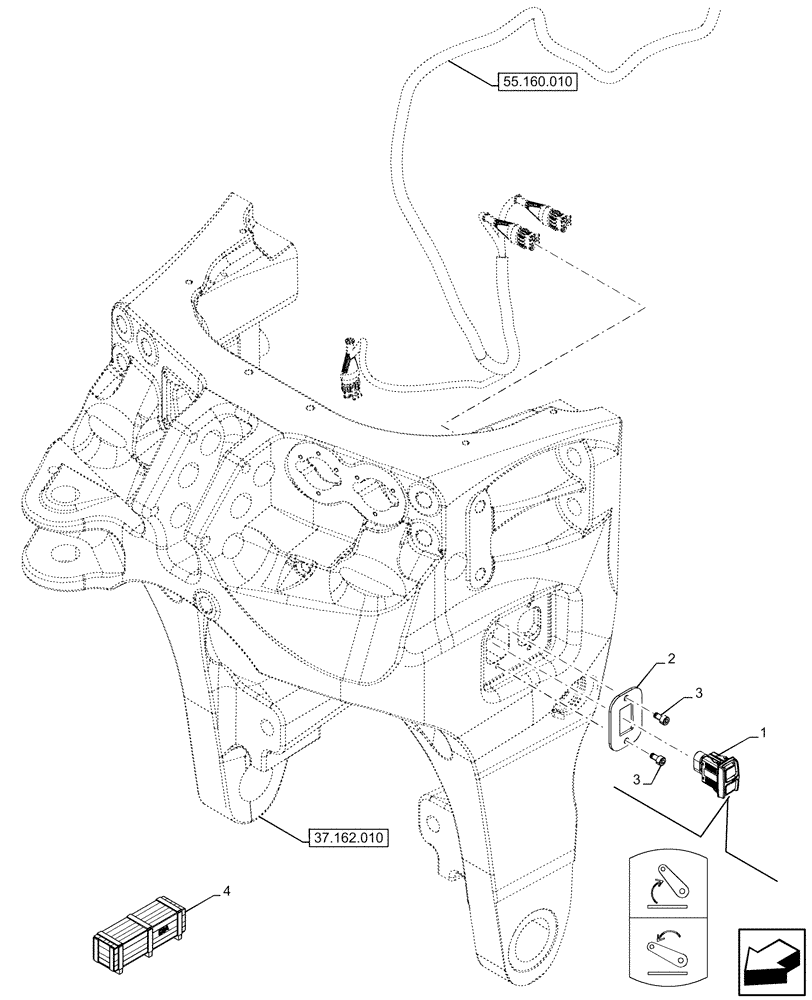

Схема запчастей Case IH OPTUM 270 CVT - (55.160.020) - VAR - 758768, 758769, 758770, 758771, 758772, 758773, 759086, 759304, 759305, 759306, 759307, 759308 - FRONT, 3 POINT HITCH, EXTERNAL, SWITCH (55) - ELECTRICAL SYSTEMS
37.162.010
2
3
4
1
3
55.160.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47725888

ROCKER SWITCH

Dual Front Hitch Switch

1шт.

2

87643928

BRACKET

1шт.

3

14305121

HEX SOC SCREW,M6 x 12mm, Cl 8.8

2шт.

4

718062034

DIA KIT, TRACTOR

Front Hydraulic Power Lift, Incl 1 - 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

4

731033014

DIA KIT, TRACTOR

Front Hydraulic Power Lift, Incl 1 - 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
