(55.350.010) - VAR - 391158, 391159, 758052, 758053, 758054 - REAR AXLE, ANTILOCK BRAKING SYSTEM (ABS), SENSOR

Запчасти Case IH OPTUM 270 CVT (55.350.010) - VAR - 391158, 391159, 758052, 758053, 758054 - REAR AXLE, ANTILOCK BRAKING SYSTEM (ABS), SENSOR (55) - ELECTRICAL SYSTEMS

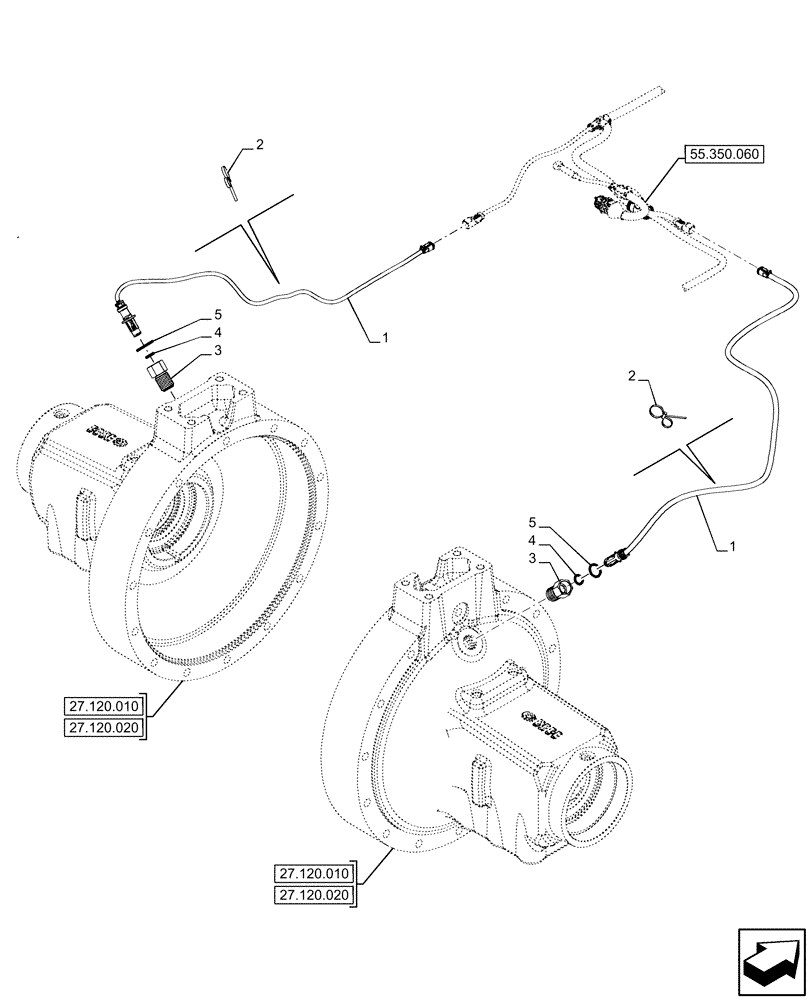

Схема запчастей Case IH OPTUM 270 CVT - (55.350.010) - VAR - 391158, 391159, 758052, 758053, 758054 - REAR AXLE, ANTILOCK BRAKING SYSTEM (ABS), SENSOR (55) - ELECTRICAL SYSTEMS
27.120.010
3
2
5
4
3
4
1
2
5
1
55.350.060
27.120.020
27.120.020
27.120.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84582720

WIRE HARNESS,Rear Wheel Speed Sensor

2шт.

2

82013031

CABLE TIE,193mm L

9шт.

3

84395487

SLEEVE,16mm ID x 18mm OD x 31.5mm L

2шт.

4

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

5

14438185

O-RING,24mm ID x 3mm

2шт.
