(55.404.250) - VAR - 759046, 759047 - HEADLIGHT

Запчасти Case IH OPTUM 270 CVT (55.404.250) - VAR - 759046, 759047 - HEADLIGHT (55) - ELECTRICAL SYSTEMS

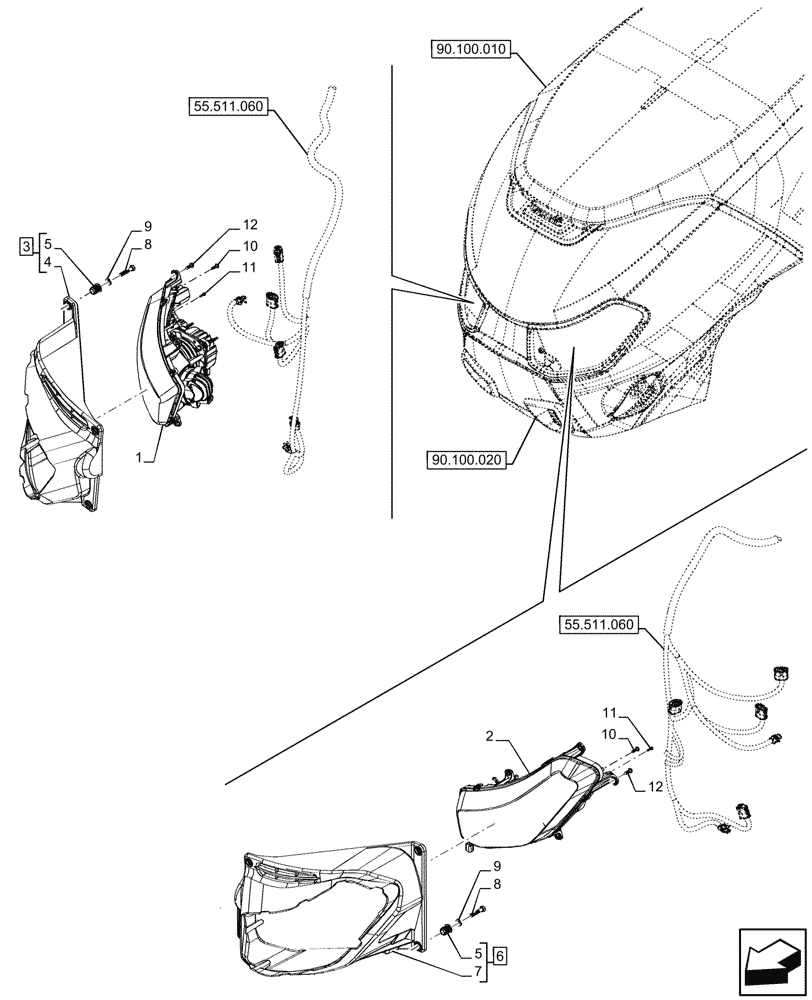

Схема запчастей Case IH OPTUM 270 CVT - (55.404.250) - VAR - 759046, 759047 - HEADLIGHT (55) - ELECTRICAL SYSTEMS
90.100.020
3
11
6
1
5
8
8
4
7
2
9
12
10
55.511.060
12
5
55.511.060
10
11
9
90.100.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47576033

RH HEADLAMP,Led

RH

1шт.

2

47576039

LH HEADLAMP

LH

1шт.

3

47848133

SUPPORT

ASSY, RH, Incl 4, 5 (Qty 2)

1шт.

4

NSS

NOT SOLD SEPARAT

Support, Incl in 3

1шт.

5

47761180

BUSHING,13mm ID x 15mm OD x 22.5mm L

4шт.

6

47848119

SUPPORT

ASSY, LH, Incl 5 (Qty 2), 7

1шт.

7

NSS

NOT SOLD SEPARAT

Support, Incl in 3

1шт.

8

16044021

SCREW,Hex, M8 x 1.25 x 40mm, Cl 8.8

8шт.

9

83931520

WASHER,8.4mm ID x 17mm OD x 2mm Thk

8шт.

10

15646901

SCREW,Pan Hd, M5.5 x 1.8 x 16mm

8шт.

11

15688175

SCREW

16шт.

12

87597956

SELF-TAP SCREW,Pan Cross Recess Phillips, M6.3 x 1.8 x 22mm

10шт.
