(55.512.240) - VAR - 758787 - SEAT, AIR SUSPENSION, COMFORT PACK 1, SWITCH, HARNESS, AIR COMPRESSOR

Запчасти Case IH OPTUM 270 CVT (55.512.240) - VAR - 758787 - SEAT, AIR SUSPENSION, COMFORT PACK 1, SWITCH, HARNESS, AIR COMPRESSOR (55) - ELECTRICAL SYSTEMS

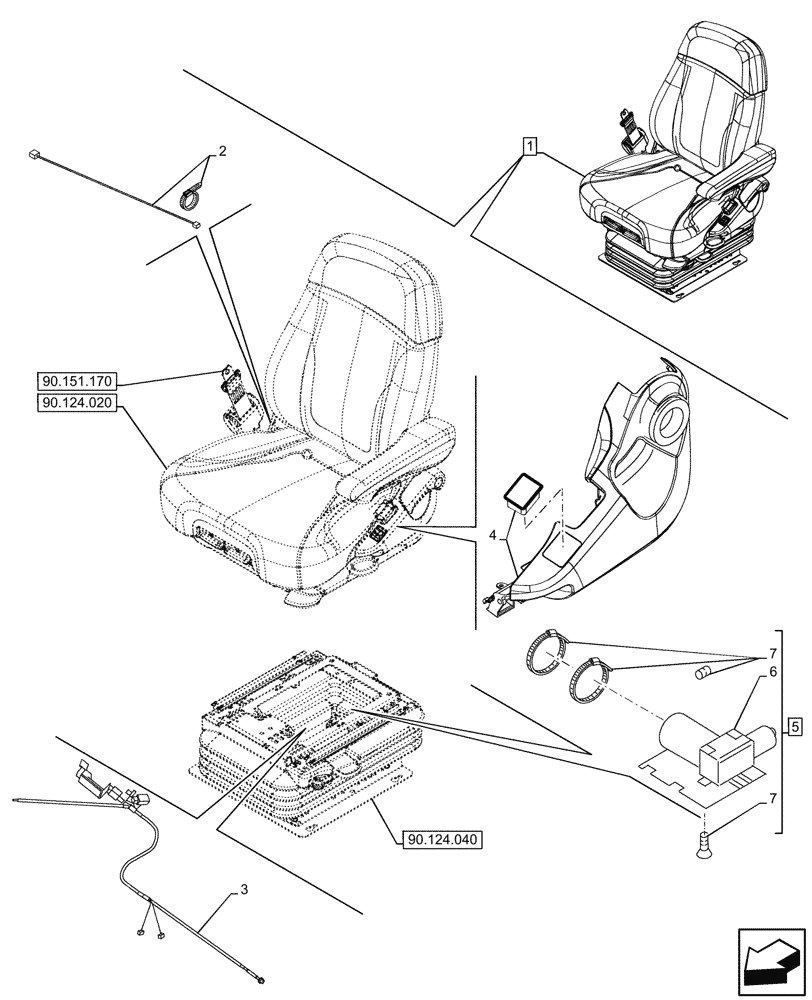

Схема запчастей Case IH OPTUM 270 CVT - (55.512.240) - VAR - 758787 - SEAT, AIR SUSPENSION, COMFORT PACK 1, SWITCH, HARNESS, AIR COMPRESSOR (55) - ELECTRICAL SYSTEMS
90.124.020
6
2
4
7
7
3
5
1
90.151.170
90.124.040
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47544015

DRIVER SEAT

ASSY, Fabric Verona Grey, Comfort Pack 1, Incl 2 - 7

1шт.

See also Driver Seat Components in Figure 55.512.250, 90.124.020, 90.124.030, 90.124.040, 90.124.050, 90.151.170

1шт.

2

47891438

WIRE HARNESS

1шт.

3

47891532

WIRE HARNESS

1шт.

4

47891411

COVER

1шт.

5

84190980

AIR COMPRESSOR

ASSY, Incl 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Air Compressor, Incl in 5

1шт.

7

84191008

REPAIR KIT

1шт.
