(55.530.010) - VAR - 758809 - REAR VIEW CAMERA, PREDISPOSITION

Запчасти Case IH OPTUM 270 CVT (55.530.010) - VAR - 758809 - REAR VIEW CAMERA, PREDISPOSITION (55) - ELECTRICAL SYSTEMS

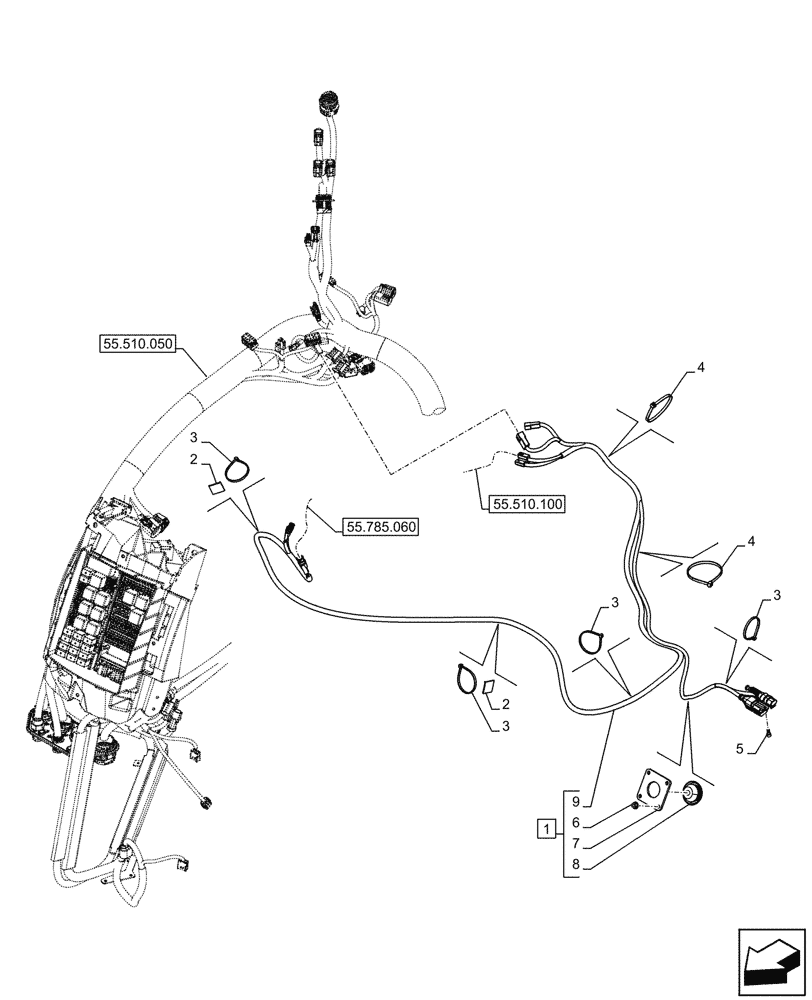

Схема запчастей Case IH OPTUM 270 CVT - (55.530.010) - VAR - 758809 - REAR VIEW CAMERA, PREDISPOSITION (55) - ELECTRICAL SYSTEMS
55.510.100
7
2
1
8
3
3
4
2
3
3
9
4
5
6
55.510.050
55.785.060
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47904334

WIRE HARNESS

ASSY, Rear View Camera, Incl 7, 8, 9

1шт.

2

84470216

COVER

3шт.

3

14560187

COLLAR,199mm L

6шт.

4

14560287

CABLE TIE,207.00mm L

3шт.

5

864-5012

HEX SOC SCREW,M5 x 12mm, Cl 8.8

1шт.

6

825-5146

SERRATED NUT,M6, Flg Ser

4шт.

7

84579552

COVER

1шт.

8

82016008

GROMMET,45.47mm OD x 32mm ID x 19.05mm Thk

1шт.

9

NSS

NOT SOLD SEPARAT

Harness, Incl in 1

1шт.
