(55.640.010) - VAR - 758647 - ELECTRONIC CONTROL UNIT

Запчасти Case IH OPTUM 270 CVT (55.640.010) - VAR - 758647 - ELECTRONIC CONTROL UNIT (55) - ELECTRICAL SYSTEMS

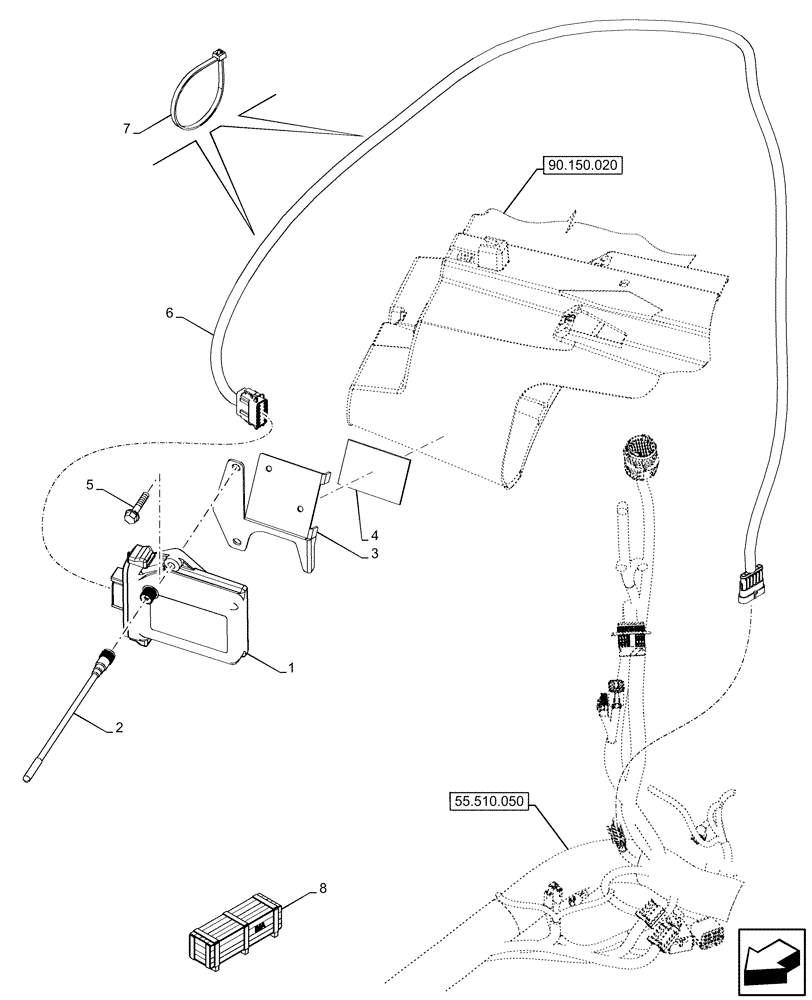

Схема запчастей Case IH OPTUM 270 CVT - (55.640.010) - VAR - 758647 - ELECTRONIC CONTROL UNIT (55) - ELECTRICAL SYSTEMS
55.510.050
2
4
1
8
6
5
7
3
90.150.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47558575

ECU

1шт.

2

47774079

ANTENNA

1шт.

3

47838586

BRACKET

1шт.

4

47843738

TAPE

1шт.

5

86511839

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

2шт.

6

47830020

WIRE HARNESS

TPMS Control Unit

1шт.

7

82013031

CABLE TIE,193mm L

3шт.

8

731006014

DIA KIT, TRACTOR

Tire Pressure Monitor, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
