(90.102.020) - VAR - 391215, 391216, 391217, 758207, 758208, 758209, 758210, 758211 - ENGINE HOOD, SUPPORT

Запчасти Case IH OPTUM 270 CVT (90.102.020) - VAR - 391215, 391216, 391217, 758207, 758208, 758209, 758210, 758211 - ENGINE HOOD, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

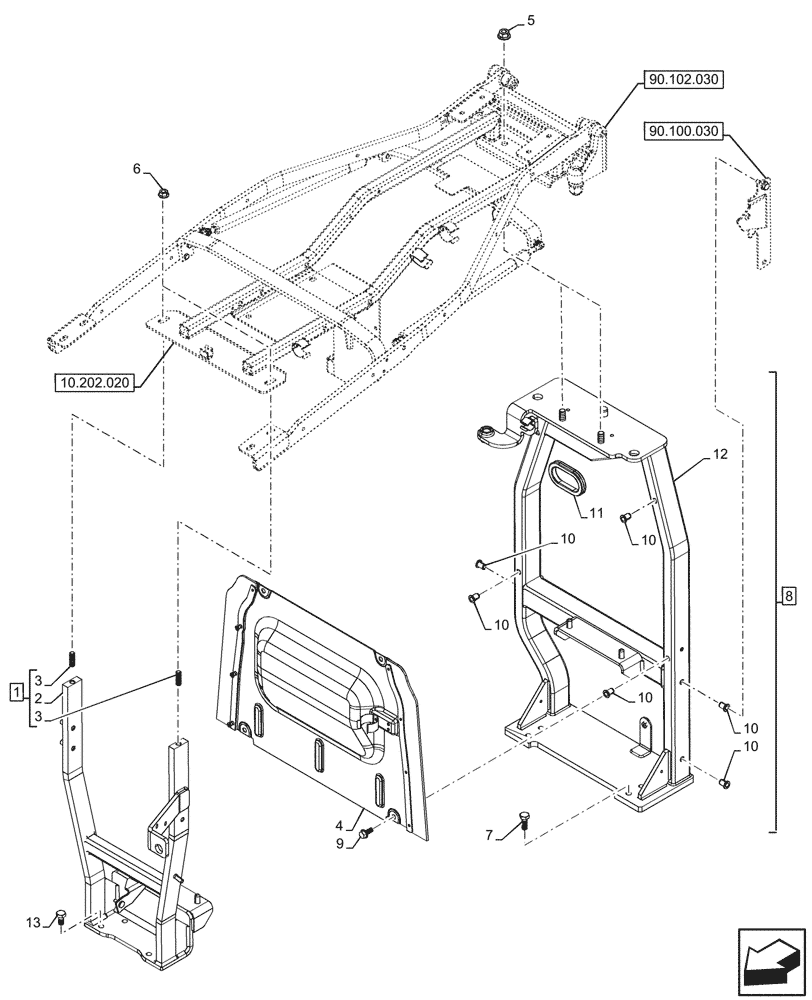

Схема запчастей Case IH OPTUM 270 CVT - (90.102.020) - VAR - 391215, 391216, 391217, 758207, 758208, 758209, 758210, 758211 - ENGINE HOOD, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.102.030
6
5
1
7
4
10
10
10
13
10
2
9
10
12
8
11
3
3
10
10.202.020
90.100.030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47698791

SUPPORT

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Support, Incl in 1

1шт.

3

13449130

STUD,M10 x 1.25 x 16mm L, Cl 10.9

4шт.

4

47786676

PROTECTION PLATE

1шт.

5

87016578

NUT,Hex, M12 x 1.75, Cl 10

2шт.

6

14059421

FLANGE NUT,Hex, M10 x 1.25, Cl. 10

2шт.

7

11106421

SCREW,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

8

47698760

SUPPORT

ASSY, Incl 10 - 12

1шт.

9

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

10

15629111

RIVET,Flat, M8 OD x 17.5mm L

7шт.

11

47808493

GROMMET,56mm H x 96mm L x 12mm Thk

1шт.

12

NSS

NOT SOLD SEPARAT

Support, Incl in 8

1шт.

13

11106121

BOLT,Hex, M10 x 1.5 x 22mm, Cl 8.8, Full Thd

4шт.
