(90.124.020) - VAR - 758787 - SEAT, AIR SUSPENSION, COMFORT PACK 1, CUSHION, ARMREST

Запчасти Case IH OPTUM 270 CVT (90.124.020) - VAR - 758787 - SEAT, AIR SUSPENSION, COMFORT PACK 1, CUSHION, ARMREST (90) - PLATFORM, CAB, BODYWORK AND DECALS

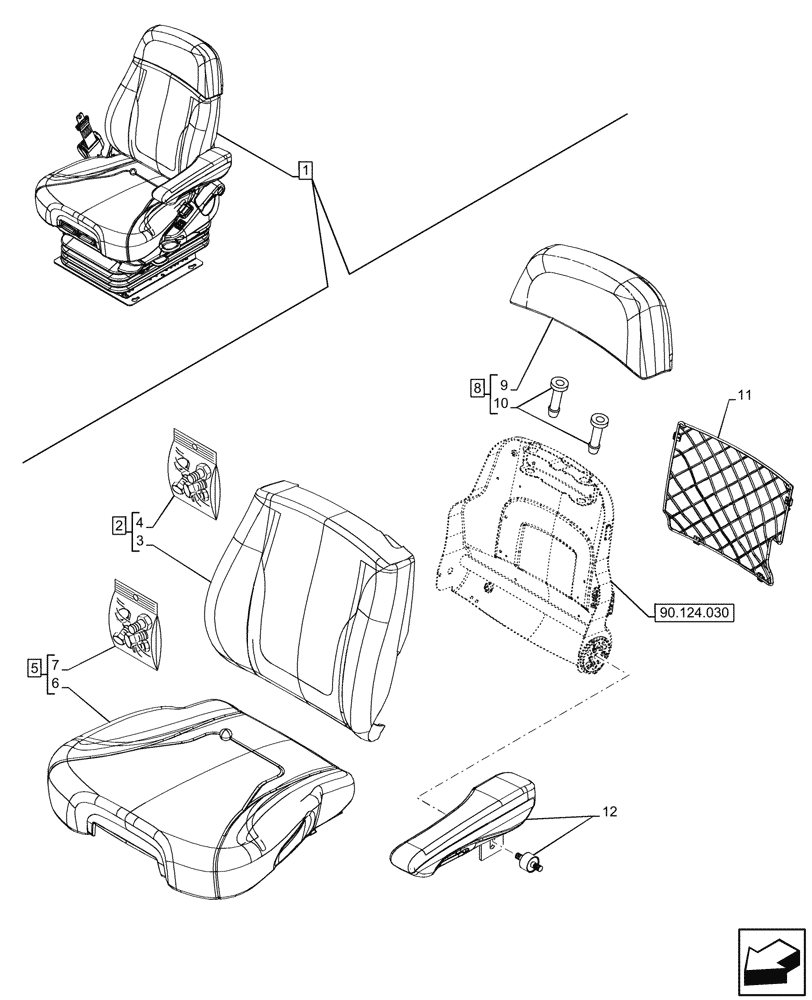

Схема запчастей Case IH OPTUM 270 CVT - (90.124.020) - VAR - 758787 - SEAT, AIR SUSPENSION, COMFORT PACK 1, CUSHION, ARMREST (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.030
4
1
9
6
12
8
5
3
2
11
10
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47544015

DRIVER SEAT

ASSY, Fabric Verona Grey, Comfort Pack 1, Incl 2 - 12

1шт.

See also Driver Seat Components in Figure 55.512.240, 55.512.250, 90.124.030, 90.124.040, 90.124.050, 90.151.170

1шт.

2

47891490

CUSHION

ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Cushion, Incl in 2

1шт.

4

84191200

SET OF PARTS

1шт.

5

47891514

SEAT CUSHION,Leather Verona Grey/Ulisse Lena

ASSY, Incl 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Seat Cushion, Incl in 5

1шт.

7

47918168

REPAIR KIT

1шт.

8

47891521

CUSHION

ASSY, Incl 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

Cushion, Incl in 8

1шт.

10

47891525

SERVICE KIT

1шт.

11

47576107

KIT

1шт.

12

47891482

ARMREST

1шт.
