(90.156.070) - VAR - 391391, 758680 - WINDSHIELD, HEATED GLASS, COVER, WITH HIGH VISIBILITY WINDOW

Запчасти Case IH OPTUM 270 CVT (90.156.070) - VAR - 391391, 758680 - WINDSHIELD, HEATED GLASS, COVER, WITH HIGH VISIBILITY WINDOW (90) - PLATFORM, CAB, BODYWORK AND DECALS

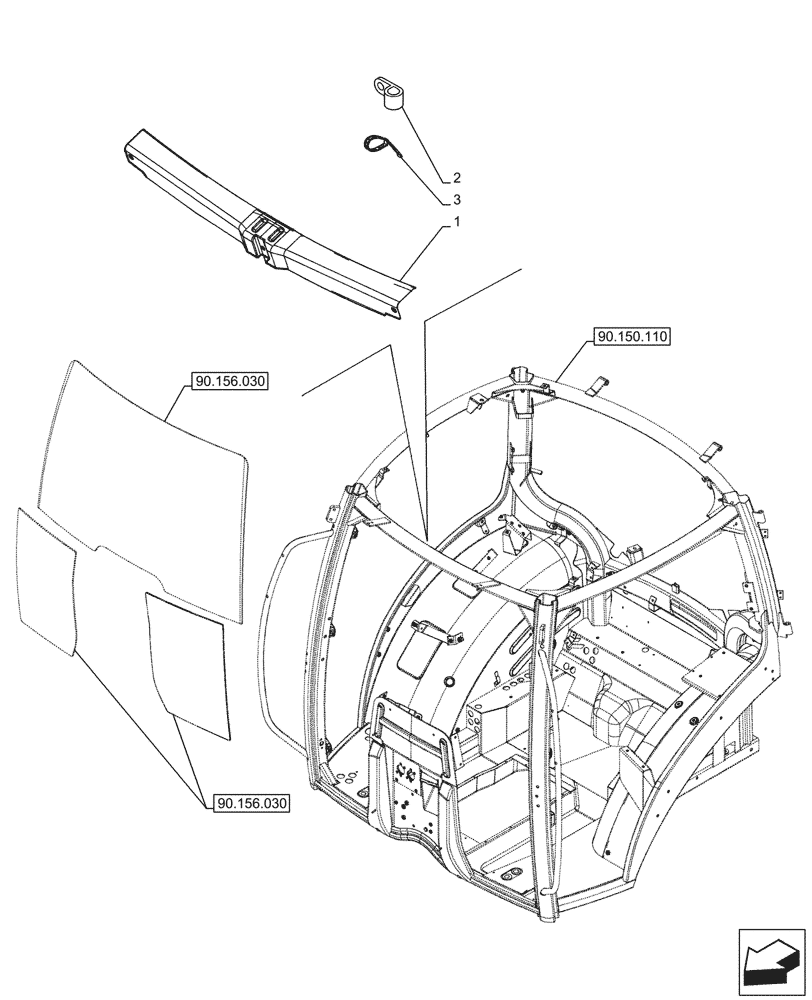

Схема запчастей Case IH OPTUM 270 CVT - (90.156.070) - VAR - 391391, 758680 - WINDSHIELD, HEATED GLASS, COVER, WITH HIGH VISIBILITY WINDOW (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.110
3
1
2
90.156.030
90.156.030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87711391

COVER

1шт.

2

47056773

RETAINER COLLAR,5mm ID x 19.1mm L x 9.5mm W

1шт.

3

14560287

CABLE TIE,207.00mm L

1шт.
