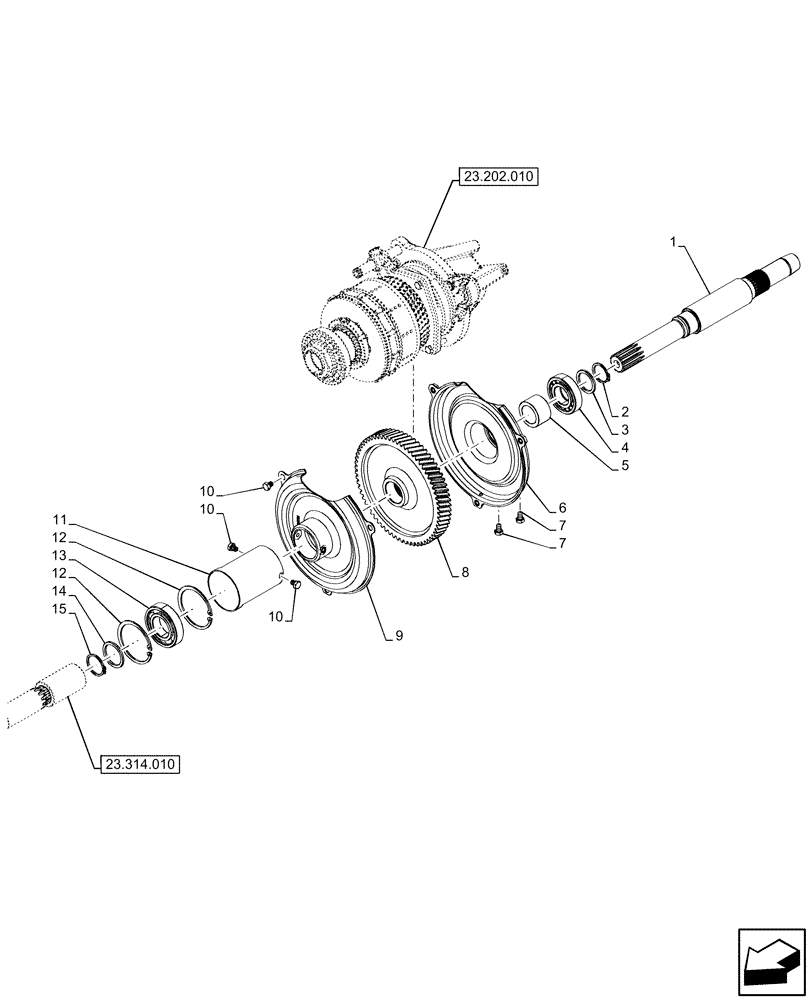

Запчасти Case IH OPTUM 300 CVT (23.202.020) - VAR - 391138, 758022, 758870, 759053 - 4WD ENGAGEMENT CLUTCH CONTROL (23) - FOUR WHEEL DRIVE SYSTEM

1

47681205

SHAFT,441mm L

441mm

1шт.

2

5109282

CIRCLIP,M35, Ext x 2.50 Thk

1шт.

3

47549185

WASHER,35.4mm ID x 45mm OD x 3.3mm Thk

1шт.

4

47543657

ROLLER CAGE BEARING,35mm ID x 72mm OD x 17mm Thk

1шт.

5

47681208

SPACER,35.1mm ID x 50mm OD x 30mm L

1шт.

6

47697353

SHELL

1шт.

7

16043180

BOLT,Hex, M8 x 14, Full Thd, Stainless

2шт.

8

47465856

GEAR,65T

Driven, Z 65

1шт.

9

47697349

SHELL

1шт.

10

47855171

SCREW,Hex, M8 x 1.25 x 11mm L

5шт.

11

47697354

SHELL

1шт.

12

11061976

SNAP RING,M80, Int

2шт.

13

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

14

47549186

WASHER,40.4mm ID x 50mm OD x 3.5mm Thk

1шт.

15

5123651

SNAP RING,36mm, External

1шт.
