(31.119.160) - VAR - 758651, 758625, 758653, 758654, 758655, 758656, 758657, 758658, 758861, 758862 - REAR PTO, OUTPUT SHAFT, GUARD

Запчасти Case IH OPTUM 300 CVT (31.119.160) - VAR - 758651, 758625, 758653, 758654, 758655, 758656, 758657, 758658, 758861, 758862 - REAR PTO, OUTPUT SHAFT, GUARD (31) - IMPLEMENT POWER TAKE OFF

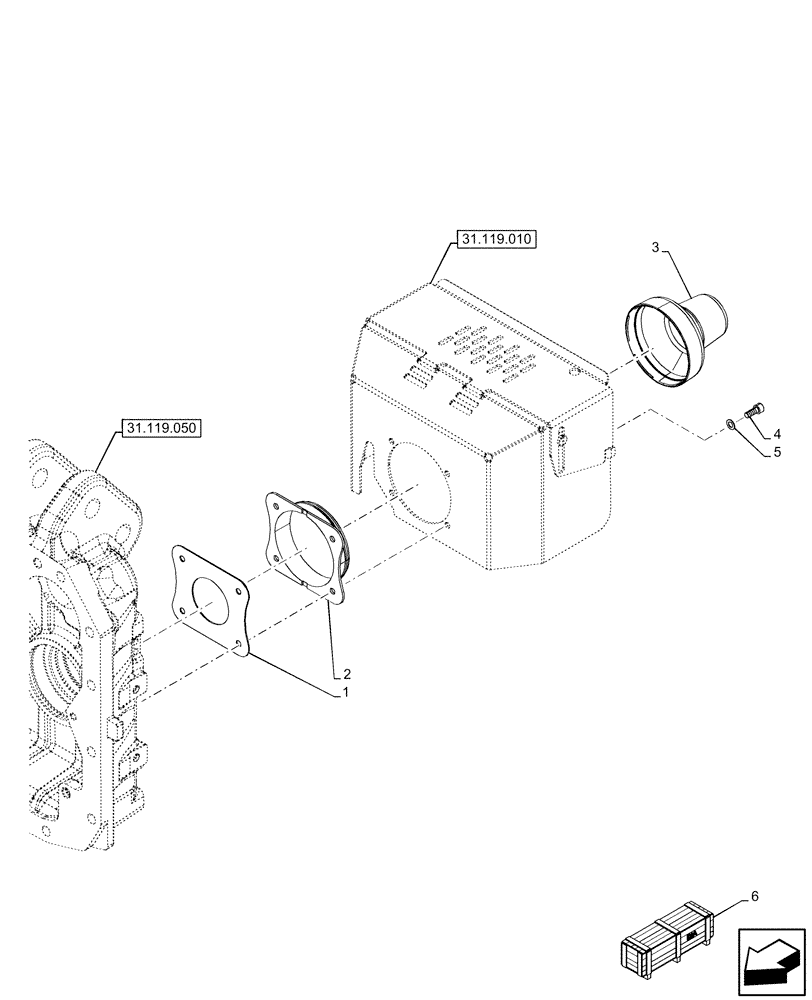

Схема запчастей Case IH OPTUM 300 CVT - (31.119.160) - VAR - 758651, 758625, 758653, 758654, 758655, 758656, 758657, 758658, 758861, 758862 - REAR PTO, OUTPUT SHAFT, GUARD (31) - IMPLEMENT POWER TAKE OFF
31.119.050
4
6
1
2
3
5
31.119.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47898294

GUARD

Front PTO Guard

1шт.

2

5155332

SEAL PROTECTION,115mm ID x 122mm OD x 29mm Thk

1шт.

3

47125899

COVER,109mm L

4шт.

4

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

5

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

1шт.

6

731011014

DIA KIT, TRACTOR

Modular Slider Frame, Incl 1 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
