(35.160.050) - VAR - 758769, 758771, 758773, 759304, 759306, 759308 - FRONT, COUPLERS

Запчасти Case IH OPTUM 300 CVT (35.160.050) - VAR - 758769, 758771, 758773, 759304, 759306, 759308 - FRONT, COUPLERS (35) - HYDRAULIC SYSTEMS

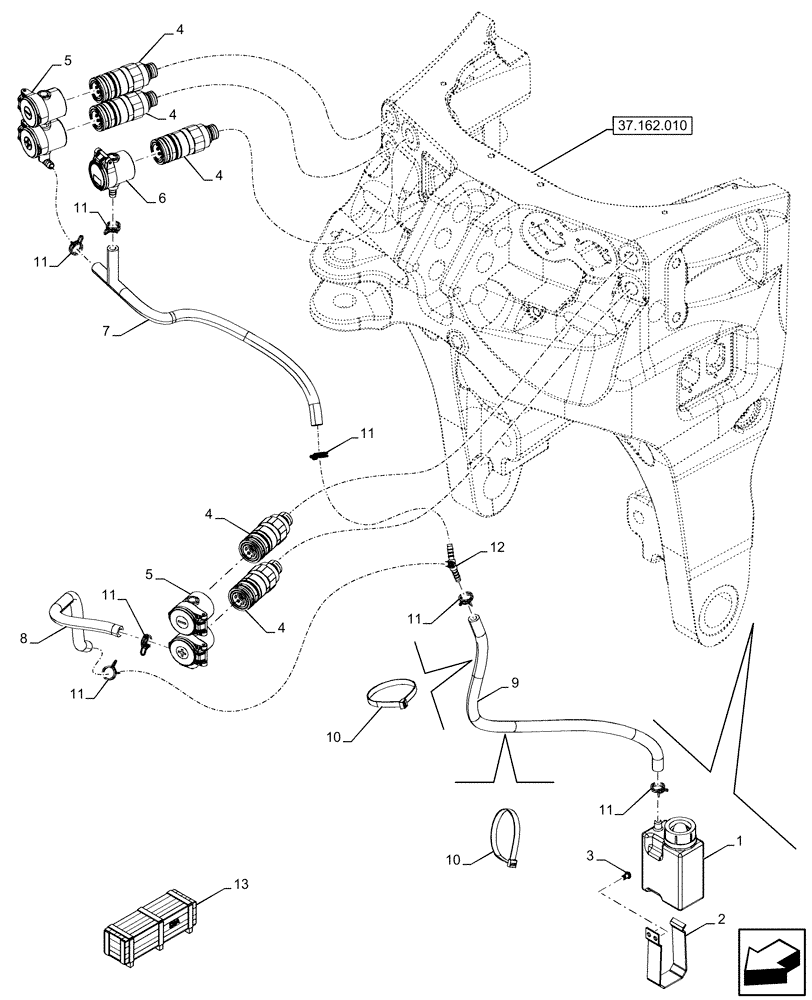

Схема запчастей Case IH OPTUM 300 CVT - (35.160.050) - VAR - 758769, 758771, 758773, 759304, 759306, 759308 - FRONT, COUPLERS (35) - HYDRAULIC SYSTEMS
37.162.010
4
4
4
10
11
2
3
7
13
4
9
11
11
11
1
12
11
6
4
10
8
11
11
5
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84527523

BOTTLE

1шт.

2

47612775

BRACKET

1шт.

3

84139321

SCREW

M6 x 10mm

2шт.

4

87681471

COUPLING, QUICK, FEM,Hex, M22 x 1.5 x 83mm L

5шт.

5

84413195

DUST CAP,52.3mm H x 120mm L

2шт.

6

47123644

PROTECTION CAP

1шт.

7

47767655

HOSE,16mm ID x 454mm L

1шт.

8

47767656

HOSE,16mm ID x 327mm L

1шт.

9

47767657

HOSE,16mm ID x 533mm L

1шт.

10

47574363

CABLE TIE,280mm L

2шт.

11

13423470

HOSE CLAMP,14.8mm - 16.4mm

7шт.

12

87397960

TEE,3 Hoses

1шт.

13

731033014

DIA KIT, TRACTOR

Front Hydraulic Power Lift, Incl 1 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

13

718198014

DIA KIT, TRACTOR

2 Front Coupler Kit, Incl 1 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
