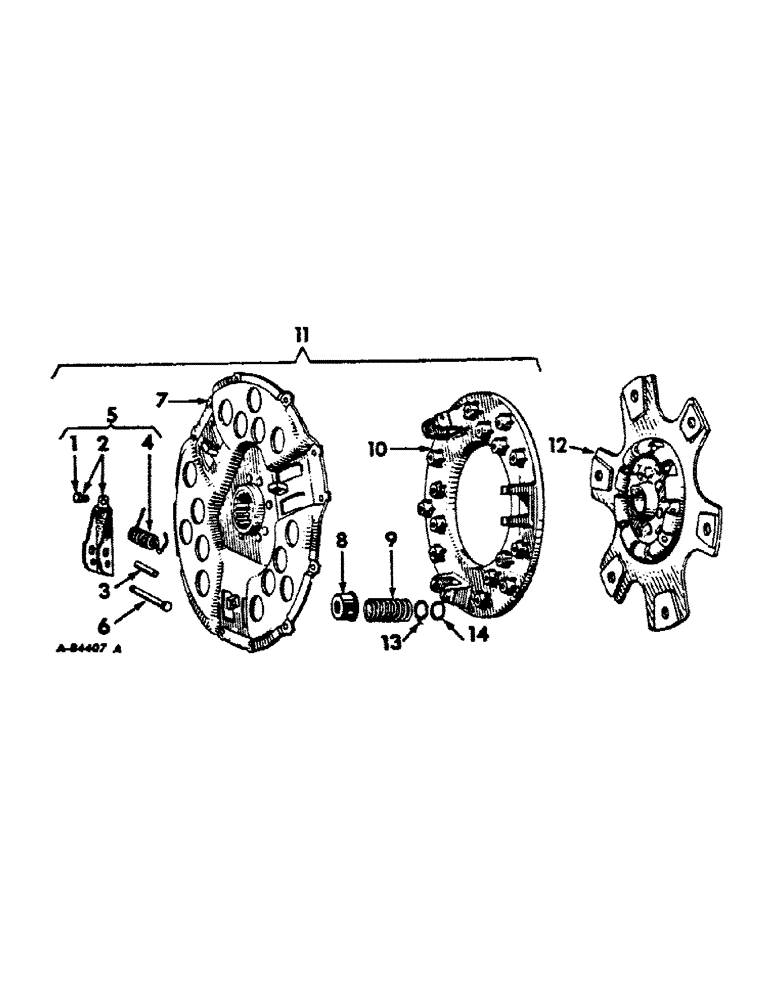

Запчасти Case IH 1466 (07-04[A]) - DRIVE TRAIN, CLUTCH, 1466 AND 1468 TRACTORS (04) - Drive Train

1

163479R3

ADJUSTMENT SCREW,Hex, 3/8" - 24 x 0.545", Drilled

SCREW, clutch lever adjusting

3шт.

2

390810R92

LEVER

LEVER ASSEMBLY, clutch

3шт.

3

146810R1

AXLE PIN

PIN, lever pivot

3шт.

4

390809R2

SPRING

SPRING, clutch lever

3шт.

5

390808R92

PACKAGE

PACKAGE, clutch lever assembly

1шт.

6

146809R1

PIN

PIN, clutch lever

3шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

3шт.

120394

WASHER,3/8", SAE

WASHER, 11/32 x 11/16 x .065 znd

3шт.

7

390806R92

PLATE

PLATE ASSEMBLY, clutch back

1шт.

8

353316R1

SPRING CUP

CUP, clutch pressure spring, one per pressure spring

1шт.

9

172062R1

SPRING

SPRING, clutch pressure, 12 used w/plate assy, 390254R94, 15 used w/plate assy 67597C92

1шт.

10

390807R1

PLATE ASSY.

PLATE, clutch pressure

1шт.

11

390254R94

TRAY

PLATE ASSY, clutch pressure, 1466, Serial Range: -14999

1шт.

11

390254R94

TRAY

PLATE ASSY, clutch pressure, 1468, Serial Range: -8999

1шт.

11

120181C92R

REMAN-CLUTCH PLATE

Remanufactured Clutch Plate W/12 Springs

1шт.

11

120181C92C

CORE-CLUTCH PLATE

Return Part Number

1шт.

11

389769A1

REMAN-CLUTCH KIT

1466, 1468, Kit Includes: 1 - 120181C92R Plate W/12 Springs, 1 - 393117R93R Disc, 1 - 69789C91 Pkg., 1 - 524598R91 Brg.

1шт.

11

389769A1C

CORE-CLUTCH KIT

Return Part Number

1шт.

11

67597C92

COVER

PLATE ASSY, clutch pressure, 1466, Start Serial: 15000

1шт.

11

67597C92R

REMAN-CLUTCH PLATE

Remanufactured, Clutch Plate, 14 in, 17 Tooth Hub, W/ 15 Springs

1шт.

11

67597C92C

CORE-CLUTCH PLATE

Return Part Number

1шт.

11

67597C92

COVER

PLATE ASSY, clutch pressure, 1468, Start Serial: 9000

1шт.

11

67597C92R

REMAN-CLUTCH PLATE

Remanufactured, Clutch Plate, 14 in, 17 Tooth Hub

1шт.

11

67597C92C

CORE-CLUTCH PLATE

Return Part Number

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, 3/8-16 x 7/8 hex-hd cap

12шт.

12

393117R92

CLUTCH DISC

CLUTCH DISK DISC ASSY, clutch driven, Dyna Life, 1466, Serial Range: -14999

1шт.

12

393117R92

CLUTCH DISC

CLUTCH DISK DISC ASSY, clutch driven, Dyna Life, 1468, Serial Range: -8999

1шт.

12

393117R93R

REMAN-CLUTCH DISC

Remanufactured, Clutch Disc - 14 in., 11 Tooth Hub, 6 Paddle

1шт.

12

393117R93C

CORE-CLUTCH DISC

Return Part Number

1шт.

12

67600C1

DISC

DISC ASSY, clutch driven, Dyna Life, 1466, Start Serial: 15000

1шт.

12

67600C1

DISC

DISC ASSY, clutch driven, Dyna Life, 1468, Start Serial: 9000

1шт.

12

142197C4R

REMAN-CLUTCH DISC

Remanufactured Clutch Disc, 14 in., 11 Tooth Hub, 1 1/4 in. OD of Splines, Full Round Disc, 8 Buttons, 1466/1468

1шт.

12

142197C4C

CORE-CLUTCH DISC

Return Part Number

1шт.

13

311291C1

INSULATING WASHER

WASHER, insulating, one per pressure spring

1шт.

14

311292C1

WASHER

WASHER, retainer, one per pressure spring

1шт.
