(142) - HYDRAULIC PUMP, DUAL ELEMENT

Запчасти Case IH 1470 (142) - HYDRAULIC PUMP, DUAL ELEMENT (08) - HYDRAULICS

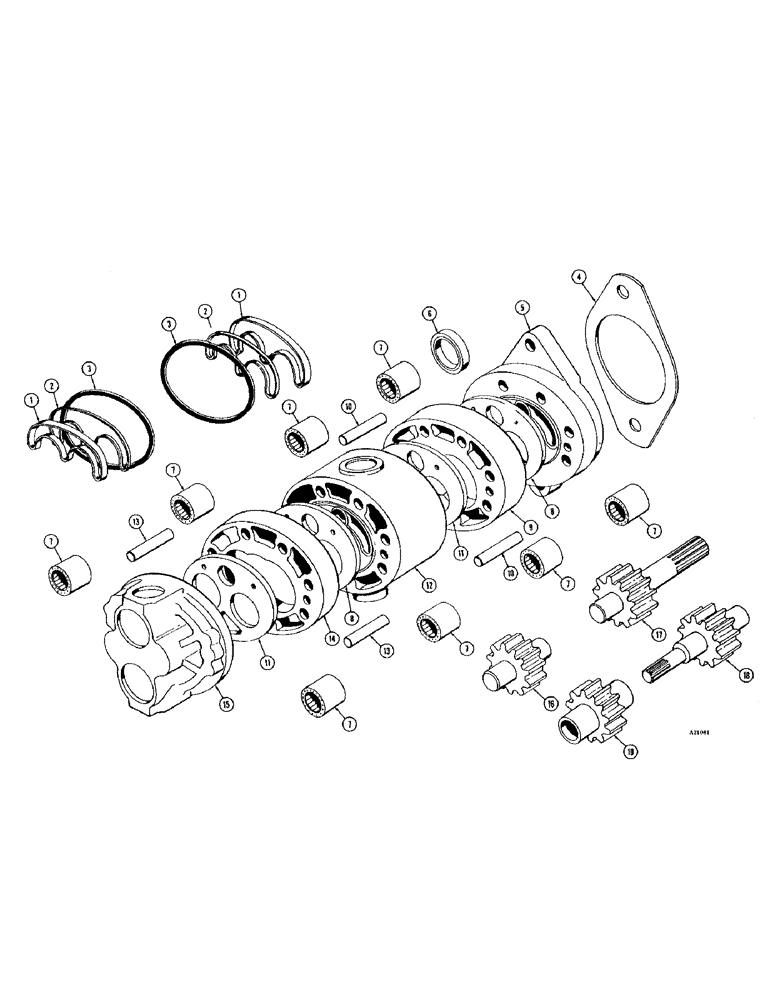

Схема запчастей Case IH 1470 - (142) - HYDRAULIC PUMP, DUAL ELEMENT (08) - HYDRAULICS
2
1
7
12
7
2
7
5
7
7
7
14
3
8
9
13
18
16
10
3
19
11
1
11
7
10
11
6
7
8
4
13
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

T38912

PUMP, HYDRAULIC

PUMP - hydraulic, dual element, Includes: Ref. 1 - 19

1шт.

1

T39085

RING

- backup

4шт.

2

T39086

SEALING RING

RING - sealing

4шт.

3

T39084

SEAL RETAINER

- retaining

4шт.

4

T38505

GASKET

- hyd. pump, 2 bolt "B"

1шт.

5

T39076

BODY ASSY.

1шт.

61-692

HEX SOC SCREW,3/8"-16 x 5 3/4"

SCREW - hex. socket hd. 3/8" x 5-3/4"

2шт.

13-696

BOLT,Hex, 3/8" - 16 x 6", Gr 5

Includes: Ref. 6 and 7 Hex, 3/8"-16 x 6", G5

6шт.

6

T39095

OIL SEAL

- oil

1шт.

7

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING - needle

2шт.

8

T39090

PLATE ASSY.

PLATE - wear

2шт.

9

A44100

PLATE

- gear (Replaces T39078)

1шт.

10

T39077

PIN

- dowel

2шт.

11

T39089

LARGE PLATE

PLATE - wear

2шт.

13

T39083

PIN

- dowel

2шт.

12

T39091

BEARING PLATE ASSEMBLY, Includes: Ref. 7

1шт.

14

T39082

PLATE

- gear

1шт.

15

T39087

COVER ASSEMBLY, Includes: Ref. 7

1шт.

16

T39081

FRONT IDLER

SHAFT & GEAR ASSEMBLY - idler

1шт.

17

T39075

DRIVE SHAFT & GEAR ASSEMBLY

1шт.

18

T39092

GEAR

DRIVE SHAFT & GEAR ASSEMBLY

1шт.

19

T39088

GEAR - drive

1шт.

A32395

WASHER

- special, 25/64 x 9/16 x 1/16" (Not shown)

8шт.

T39094

SEAL KIT

KIT - seal and wear plate (Consists of (4) T39084, (4) T39085, (4) T39086, (2) T39089, (2) T39090 and (1) T39095)

1шт.
