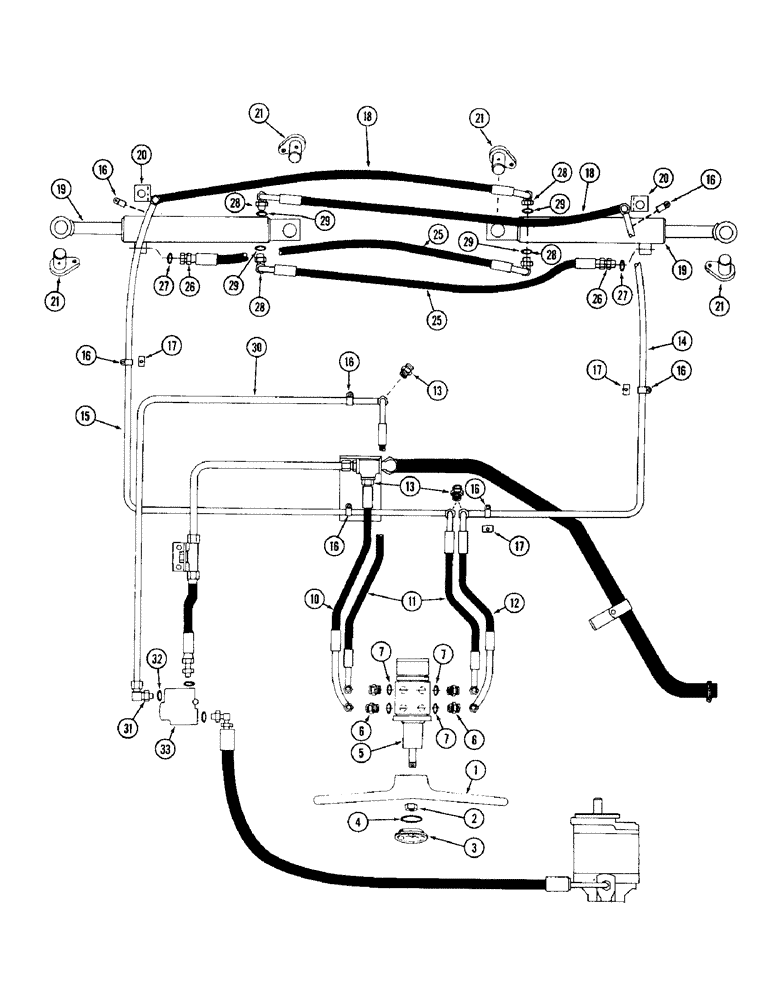

Запчасти Case IH 1470 (126) - FRONT STEERING CONTROL ASSEMBLY (05) - STEERING

1

A35602

STEERING WHEEL

WHEEL - steering control

1шт.

2

A14567

JAM NUT

- steering wheel to valve shaft

1шт.

3

A38785

CYLINDER END CAP

MEDALLION - steering wheel

1шт.

4

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - medallion

1шт.

5

L13405

PUMP, HYDRAULIC

VALVE - manual, front steering (Repairs Figure 128 [1] )

1шт.

164-540

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 3/4"

SCREW - cap, 5/16" x 3/4" N.C. but. hd.

4шт.

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

4шт.

6

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - steering valve, 1/2" tube x 3/4"-16, Incl. Ref 7

4шт.

10

T38943

TUBE ASSY.

HOSE - steering valve return

1шт.

11

T38944

HOSE ASSY.

HOSE - steering valve inlet & steering valve right turn

2шт.

12

T38945

TUBE ASSY.

HOSE - steering valve left turn

1шт.

13

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

- tube straight 1/2" tube

3шт.

14

T38949

TUBE - valve to cylinder R.H. 0.5" OD

1шт.

15

T38950

TUBE - valve to L.H. cylinder

1шт.

16

49838

CLAMP

- tube

7шт.

17

A16769

WASHER

SPACER - tube clamp

3шт.

18

T38946

TUBE ASSY.

HOSE - tube to front steering cly.

2шт.

19

A44900

CYLINDER

- hyd. front steering (Replaces A44900) (See Figure 130)

2шт.

19

T38940

CYLINDER

- hyd. front steering (Order A44900) (See Figure 131A)

2шт.

20

T38933

COVER

BRACKET - tube clamp

2шт.

21

A55210

PIN - steering cylinder

4шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8"

4шт.

25

T38941

TUBE ASSY.,21.9, 2.125" L

HOSE - front cylinder crossover

2шт.

26

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - staight, 3/8" tube x 9/16"-18, Incl. Ref. 27

2шт.

27

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter, 3/8" OD

2шт.

28

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degrees, 3/8" tube x 9/16"-18, Includes: Ref. 29

4шт.

29

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter, 3/8" OD

1шт.

30

T38956

GEARBOX ASSY,0.5" OD

TUBE - front steering supply

1шт.

31

A35613

ELBOW

ADAPTER - front strg. port (3/4" N.F. flare x 9/16" N.F.), Includes: Ref. 32

1шт.

32

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter, 3/8" OD

1шт.

33

T38937

VALVE - flow divider (Repairs Figure 128)

1шт.

7

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - adapter, 1/2" O.D.

4шт.
