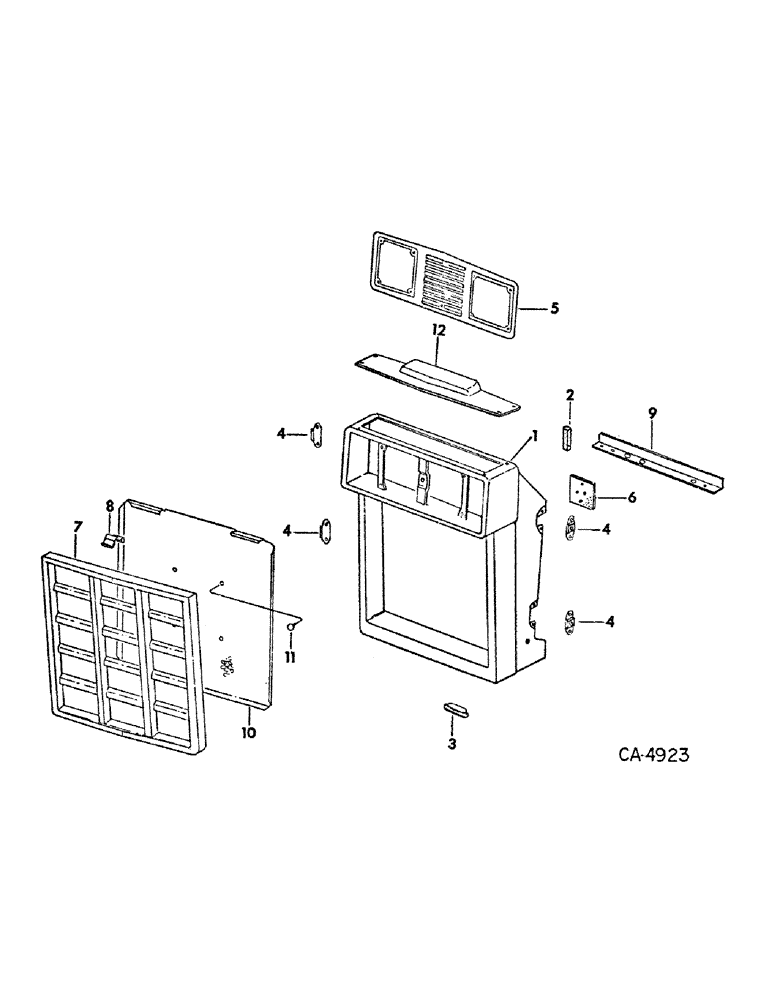

Запчасти Case IH 1586 (06-05) - COOLING, GRILLE AND SUPPORTS Cooling

1

71782C91

SUPPORT ASSY.

SUPPORT ASSY, radiator and grille

1шт.

19555R1

PIN,5/16" x 1", Coiled

2шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 hex-hd cap

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

2

STRIP, radiator support panel foam, Use 3 in. from 4 ft. length marked 73215C1

4шт.

3

104520C1

PLUG

radiator support

2шт.

4

378710R91

PLATE ASSY.

BRACKET, radiator mounting plate

4шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

8шт.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 7/8 hex-hd cap

4шт.

5

71780C1

SUPPORT ASSY.

SUPPORT, head light, plastic, Replaces 531217R1 die cast

1шт.

156265

SCREW,Cross Flat Hd, 1/4" - 20 x 1"

1/4-20 x 1 cr-rec-f-hd mach, die cast

2шт.

531225R1

SQ HOLE WASHER

head light support

6шт.

533081R1

SCREW,Phillips Drive, Flat HD, 1/4" x 1"

head light support, plastic

4шт.

6

531218R2

SCREEN

head light support

1шт.

7

531231R1

GRILLE ASSY

GRILLE, radiator

1шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4-20 x 1/2 slt-pan-hd mach, die cast grille

2шт.

27581R1

SCREW, 1/4-14 x 3/4 pan-hd cros-rec tapping, plastic grille

2шт.

8

531223R1

SPRING CLIP

LATCH, radiator grille

1шт.

9

71417C1

BAFFLE, radiator air

1шт.

187954

GROMMET,1" ID x 1 3/4" x .062"

rubber

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

10

531233R2

GRILLE ASSY

SCREEN, radiator grille

1шт.

11

368175R1

BUMPER

grille screen, Use w/die cast grille

4шт.

12

531221R2

COVER ASSY

COVER, head light support

1шт.

369917R1

SCREW,Hex Wshr Hd, 1/4" - 20 x 5/8"

1/4-20 x 5/8 hex-washer-hd cap

4шт.
