(1-14) - PICTORIAL INDEX, LUBRICATION HYDRAULICS

Запчасти Case IH 1896 (1-14) - PICTORIAL INDEX, LUBRICATION HYDRAULICS (00) - PICTORIAL INDEX

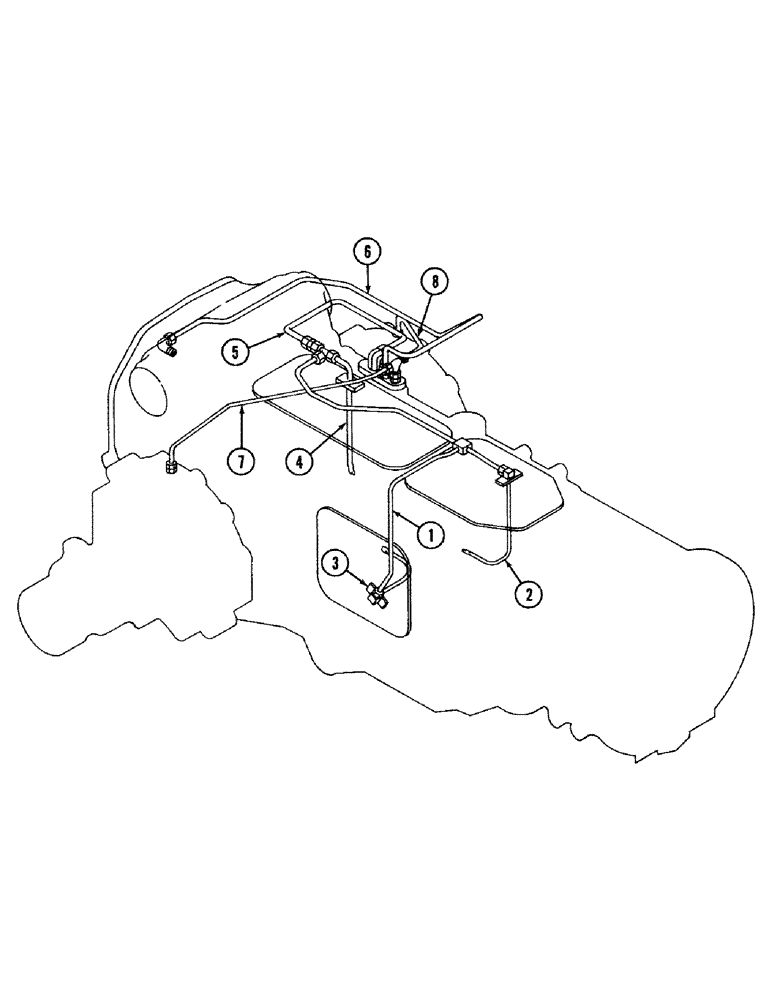

Схема запчастей Case IH 1896 - (1-14) - PICTORIAL INDEX, LUBRICATION HYDRAULICS (00) - PICTORIAL INDEX
6
4
5
1
7
8
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A177203

TUBE

Transmission Gear Lubrication Tube, Figure 8-260

1шт.

2

A168919

PIPE

Transfer Gear Lubrication Tube, Figure 8-260

1шт.

3

A179070

PIPE

Second and Third Gear Lubrication Tube, Figure 8-260

1шт.

4

A165324

PIPE

Spiral Bevel Lubrication Tube, Figure 8-260

1шт.

5

A167843

TUBE

Spiral Bevel Supply Tube, Figure 8-260

1шт.

6

A180295

TUBE

Pump to PTO Lubrication Tube, Figure 8-248

1шт.

7

A180575

TUBE

Planetary Lubrication Tube, Right Hand (Transmission Serial No. 16246636 and after), Figure 8-260

1шт.

8

A180574

TUBE

Planetary Lubrication Tube, Left Hand (Transmission Serial No. 16246636 and after), Figure 8-260

1шт.
