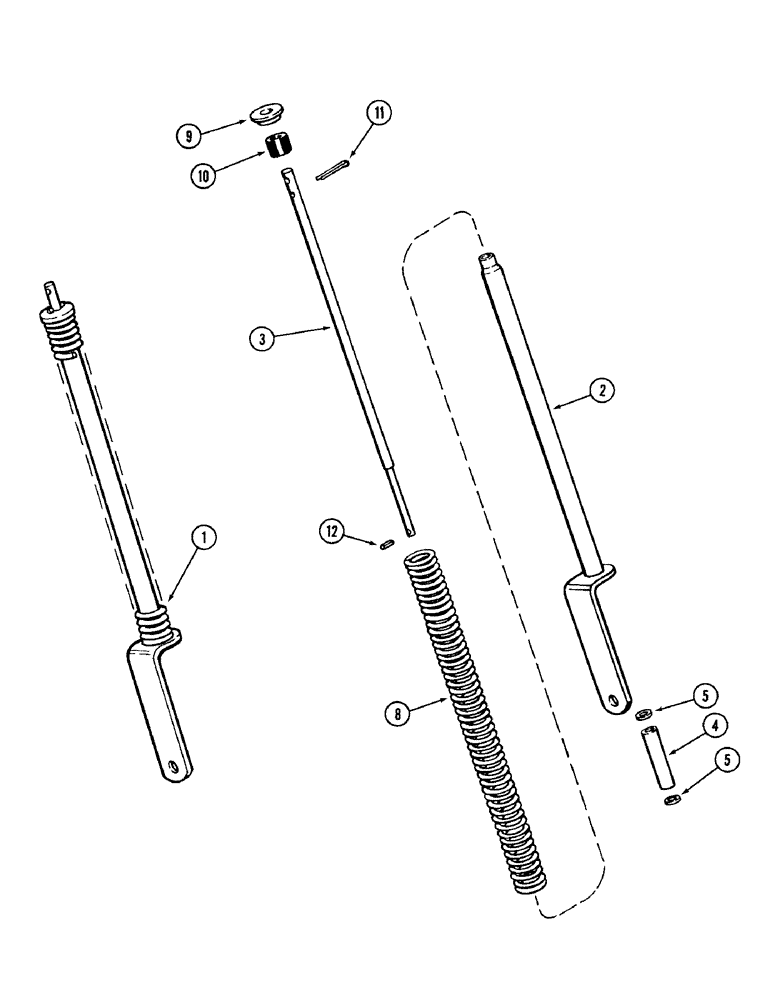

Запчасти Case IH 1896 (9-348) - HOOD LIFT CYLINDER (09) - CHASSIS/ATTACHMENTS

A147817

GAS STRUT,952.5mm Extended, 609.6mm Compressed

ASSEMBLY - hood lift, Includes: Ref. 2 - 12

2шт.

2

NSS

NOT SOLD SEPARAT

CYLINDER - hood lift (Order A147817) (Reference No. A147818)

1шт.

3

NSS

NOT SOLD SEPARAT

SHAFT - cylinder (Order A147821) (Reference No. A147821)

1шт.

4

A147819

PISTON ASSY.

PISTON - lift cylinder

1шт.

5

195-522

WASHER,5/16"

- flat, 3/8 x 3/4 x 1/16 inch (10 x 19 x 2 MM)

2шт.

8

NSS

NOT SOLD SEPARAT

SPRING - hood lift (Reference No. A145643)

1шт.

9

A147820

RETAINER

- spring lift

1шт.

10

A166395

SEAL

- bumper

1шт.

11

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

12

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, 3/16" x 3/4", Slotted

1шт.
