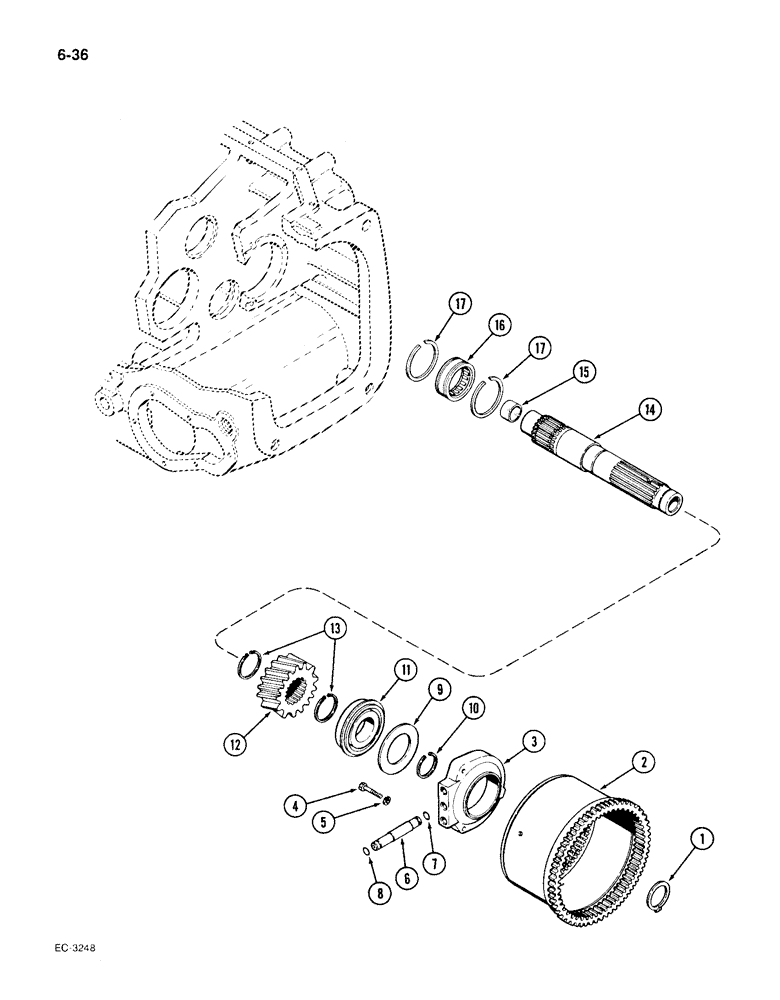

Запчасти Case IH 1896 (6-36) - POWER SHIFT TRANSMISSION, PLANETARY OUTPUT (06) - POWER TRAIN

1

A7611

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

1шт.

2

REF

INSTRUCTION

CLUTCH - (C2) and (C3) (See figure 6-32), Start Serial: 16265423

1шт.

2

REF

INSTRUCTION

CLUTCH - (C2) and (C3) (See Figure 6-34), Serial Range: -16265423

1шт.

3

A61676

COVER ASSY

DISTRIBUTOR - oil

1шт.

4

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

5

492-11038

LOCK WASHER,3/8"

3шт.

6

A153811

TUBE

- oil

3шт.

7

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- inner (Replaces G102845)

3шт.

8

392382R1

O-RING,0.551" ID x 0.07" Width

- 9/16 x 11/16 inch, Class 6

3шт.

9

A64764

GUARD

SHIELD - bearing, planetary output shaft, center

1шт.

10

A27089

SNAP RING,2.36mm Thk, Ext

RING - retaining, planetary output shaft center bearing

1шт.

11

A58098

BALL BEARING,1.9685" ID x 4.58" OD x 1.063"

BEARING - ball, planetary output shaft, center

1шт.

12

A179214

GEAR

- drive, pinion

1шт.

13

A150927

RING

- retaining

2шт.

14

A168494

SHAFT

- pinion drive, Includes: Ref. 15, Serial Range: -16265423

1шт.

14

A179326

SHAFT

- pinion drive, Includes: Ref. 15, Start Serial: 16265423

1шт.

15

A156939

BUSHING,31.83mm ID x 35.88mm OD x 19.05mm L

- drive shaft

1шт.

16

A32751

BEARING ASSY,43.96mm ID x 72mm OD x 26.99mm W

BEARING - roller, planetary shaft, rear

1шт.

17

A28153

RING

- retaining, planetary shaft, rear bearing

2шт.
