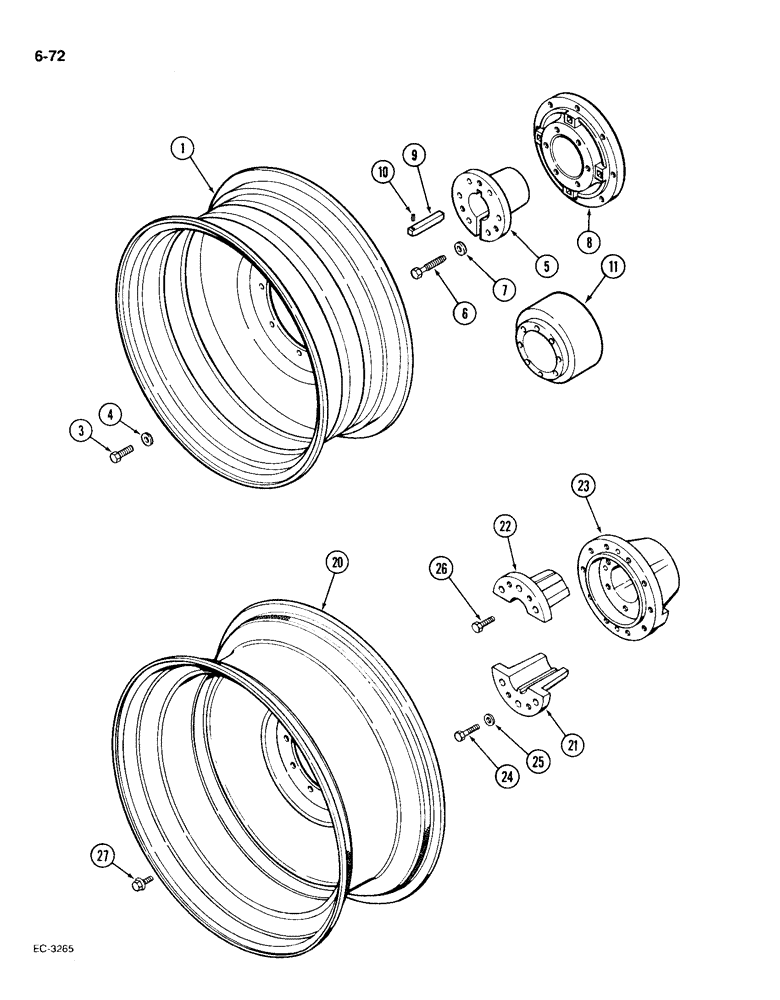

Запчасти Case IH 1896 (6-72) - STEEL DUAL REAR WHEELS, 38 AND 42 INCH WHEELS (06) - POWER TRAIN

1

A145459

WHEEL

- steel (W16L-38) (For 18.4 x 38 tire), 8 bolt

2шт.

1

A145460

WHEEL

- steel (W18L-38) (For 20.8 x 38 tire), 8 bolt

2шт.

A67417

KIT - hardware, dual wheels, 8 bolt, Includes: Ref. 3 and 4

1шт.

3

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

wheels Hex, 3/4"-10 x 2", G8

16шт.

4

D31328

WASHER

- flat, 3/4 inch, 8 bolt wheels

16шт.

A67415

KIT - universal hub (For 3-1/2 inch O.D. axle), 8 bolt wheels, Includes: Ref. 5 - 10 and hub assembly

1шт.

A67420

KIT - universal hub (For 3-7/8 inch O.D. axle), 8 bolt wheels, Includes: Ref. 5 - 10 and hub assembly

1шт.

A149013

HUB ASSEMBLY - wheel, universal (For 3-1/2 inch O.D. axle), 8 bolt, Includes: Ref. 5 - 8

2шт.

A149014

HUB

ASSEMBLY - wheel, universal (For 3-7/8 inch O.D. axle), 8 bolt, Includes: Ref. 5 - 8

2шт.

5

A59792

HUB

BUSHING - wheel, 3-1/2 inch ID, 8 bolt

1шт.

5

A63805

BUSHING

- wheel, 3-7/8 inch ID, 8 bolt

1шт.

6

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

SCREW - 3/4 inch, hub to bushing, 8 bolt wheels

6шт.

7

D31328

WASHER

- flat, 3/4 inch, 8 bolt wheels

6шт.

8

A145321

HUB CAP

HUB - universal, tapered (For 3-1/2 inch O.D. axle), 8 bolt wheels

1шт.

8

A145322

HUB

- universal, tapered (For 3-7/8 inch O.D. axle), 8 bolt wheels

1шт.

A66581

KIT

- hardware, 3-1/2 inch O.D. axle, 8 bolt wheels

1шт.

A66592

KIT

- hardware, 3-7/8 inch O.D. axle, 8 bolt wheels

1шт.

9

A34890

BUCKET TOOTH KEY

KEY - axle, 5/8 x 6 inch (For 3-1/2 inch O.D. axle), 8 bolt wheels

2шт.

9

A63219

KEY

- axle, 3/4 x 6 inch (For 3-7/8 inch O.D. axle), 8 bolt wheels

2шт.

10

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , 8 bolt wheels 1/4" x 1/2", Slotted

2шт.

11

A67430

PACKAGE

KIT - spacers, dual wheel (See Figure 6-74), 8 bolt

1шт.

20

1334329C1

WHEEL

- rear, steel (W14L-38) (For 16.9 x 38 tire), 10 bolt

2шт.

20

1334330C1

WHEEL

- rear, steel (W16-38) (For 18.4 x 38 tire), 10 bolt

2шт.

20

1334331C1

RIM

WHEEL - rear, steel (W18-38) (For 20.8 x 38 tire), 10 bolt

2шт.

20

1334332C1

RIM

WHEEL - rear, steel (W16L-42) (For 18.4 x 42 tire), 10 bolt

2шт.

20

1334333C1

RIM

WHEEL - rear, steel (W18L-42) (For 20.8 x 42 tire), 10 bolt

2шт.

A67643

PACKAGE

KIT - dual hub (for 3-1/2 inch O.D. axle), 10 bolt wheels

1шт.

A67642

KIT - dual hub (For 3-7/8 inch O.D. axle), 10 bolt wheels

1шт.

1968131C1

HUB ASSEMBLY - dual, 10 bolt (For 3-1/2 inch O.D. axle), wheels, Includes: Ref. 21 - 27

2шт.

A187154

HUB ASSEMBLY - dual, 10 bolt (For 3-7/8 inch O.D. axle), wheels, Includes: Ref. 21 - 27

2шт.

21

1968133C1

BUSHING

- hub, 3-1/2 inch ID, 10 bolt wheels

1шт.

21

A187155

BUSHING

- hub, 3-7/8 inch ID, 10 bolt wheels

1шт.

22

1968132C1

BUSHING

- hub, keyed, 3-1/2 inch ID, 10 bolt wheels

1шт.

22

A187156

BUSHING

- hub, keyed, 3-7/8 inch ID, 10 bolt wheels

1шт.

23

A180916

HUB

- wheel, 10 bolt

1шт.

24

113-840

BOLT,Hex, 7/8" - 9 x 3-1/2", Gr 8

10 bolt wheels Hex, 7/8"-9 x 3 1/2", G8

6шт.

25

28770R1

WASHER,15/16" x 1 3/4" x .219", HDN

- flat hardened, 7/8 x 1-3/4 x 7/32 inch, 10 bolt wheels

10шт.

26

113-839

BOLT,Hex, 7/8" - 9 x 3-1/2", Gr 8, Full Thd

10 bolt wheels Hex, 7/8"-9 x 3 1/2", G8, Full Thd

4шт.

27

426-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 8

- hex, 7/8 NC x 2 inch, grade 8, 10 bolt wheels

10шт.
